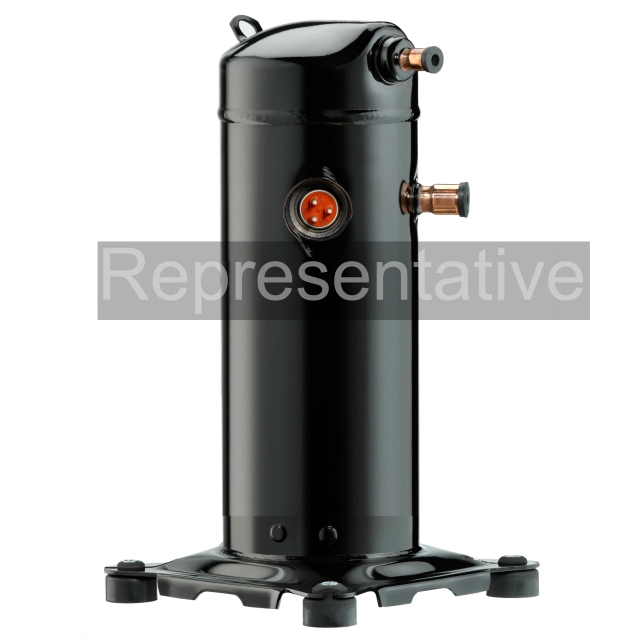

61000 BTU R410A 208/230-3 Phase Copeland Scroll Compressor
61000 BTU R410A 208/230-3 Phase Copeland Scroll Compressor
Description
ZPD61KCE-TF5-950
Z = Scroll Compressor
P = A/C Duty - R410A
D = Digital
61K = 61000 BTU
C = Model Series
E = POE Oil - AK/DA or 3MA
T = 3 Phase
F = Internal Inherent Protection - One protector, use with contactor
5 = 200/230-3 (50/60)
950 = Bill of Material Product Variation
Z = Scroll Compressor
P = A/C Duty - R410A
D = Digital
61K = 61000 BTU
C = Model Series
E = POE Oil - AK/DA or 3MA
T = 3 Phase
F = Internal Inherent Protection - One protector, use with contactor
5 = 200/230-3 (50/60)
950 = Bill of Material Product Variation
Standard Features
- High efficiency – EER 11.0 plus
- Low Noise & Vibration levels
- Inherent motor protection
- Centrifugal oil pump
- For Heat Pump & Air Conditioning duty
- POE Oil
Documents
Specifications
- BrandCopeland
- Capacity63000
- CFM7.18
- Line Voltage (60Hz)240V
- Rated Voltage (60Hz)208/230
- RefrigerantR410A
- Refrigerant Oil TypePolyol Ester (POE)
- Suction Line Size7/8"
- Variety TypeScroll
- ApplicationA/C
- Compressor Capacity61000 btu
- Frequency50Hz, 60Hz
- Height18.39 in
- Length9.26 in
- Liquid Line Size1/2 in
- LRA156.0
- Max RLA22.7
- Motor Phase3
- Oil Capacity0 ml
- Oil Recharge3.75 pints
- Shipping Height32 in
- Shipping Length32 in
- Shipping Point37406
- Shipping Weight132 lb
- Shipping Width38 in
- TechnologyScroll
- TypeHerm
- Voltage200/220/230
- Weight88.8 lb
- Width9.26 in
