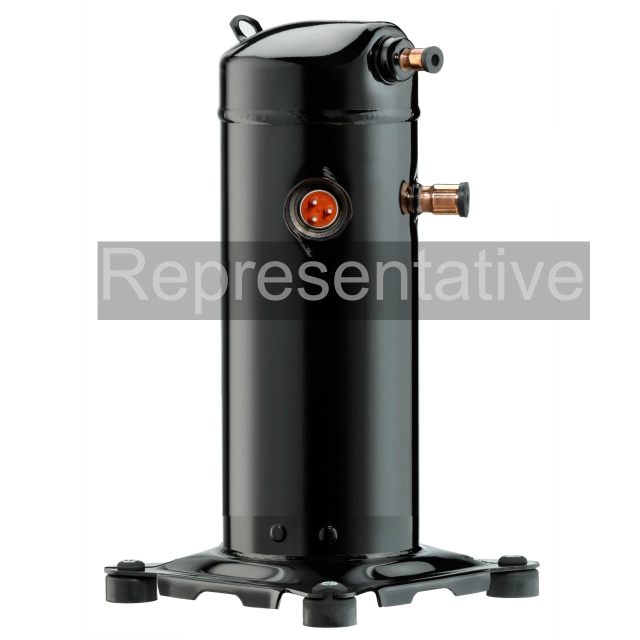

83000 BTU R410A 208/230-3 Phase Copeland Scroll Compressor
83000 BTU R410A 208/230-3 Phase Copeland Scroll Compressor
Description
ZPD83KCE-TF5-830
Z = Scroll Compressor
P = A/C Duty - R410A
D = Digital
83K = 83000 BTU
C = Model Series
E = POE Oil - AK/DA or 3MA
T = 3 Phase
F = Internal Inherent Protection - One protector, use with contactor
5 = 200/230-3 (50/60)
830 = Bill of Material Product Variation
Z = Scroll Compressor
P = A/C Duty - R410A
D = Digital
83K = 83000 BTU
C = Model Series
E = POE Oil - AK/DA or 3MA
T = 3 Phase
F = Internal Inherent Protection - One protector, use with contactor
5 = 200/230-3 (50/60)
830 = Bill of Material Product Variation
Standard Features
- High efficiency – EER 11.0 plus
- Low Noise & Vibration levels
- Inherent motor protection
- Centrifugal oil pump
- For Heat Pump & Air Conditioning duty
- POE Oil
Documents
Specifications
- BrandCopeland
- Capacity82500
- Line Voltage (60Hz)240V
- Rated Voltage (60Hz)208/230
- RefrigerantR410A
- Refrigerant Oil TypePolyol Ester (POE)
- Suction Line Size7/8"
- Variety TypeScroll
- ApplicationA/C
- Compressor Capacity83000 btu
- Frequency50Hz, 60Hz
- Height19.46 in
- Length9.69 in
- Liquid Line Size1/2 in
- LRA186.6
- Max RLA26.8
- Motor Phase3
- Oil Capacity0 ml
- Oil Recharge3.5 pints
- Shipping Height27.5 in
- Shipping Length15.5 in
- Shipping Point37406
- Shipping Weight107 lb
- Shipping Width19 in
- TechnologyScroll
- TypeHerm
- Voltage200/220/230
- Weight89.9 lb
- Width9.69 in
