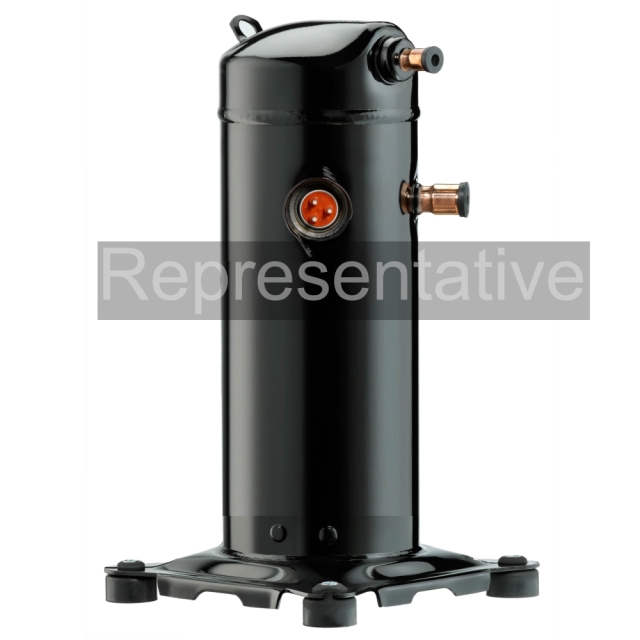

91000 BTU R410A 208/230-3 Phase Copeland Scroll Compressor
91000 BTU R410A 208/230-3 Phase Copeland Scroll Compressor
Description
ZPD91KCE-TF5-950
Z = Scroll Compressor
P = A/C Duty - R410A
D = Digital
91K = 91000 BTU
C = Model Series
E = POE Oil - AK/DA or 3MA
T = 3 Phase
F = Internal Inherent Protection - One protector, use with contactor
5 = 200/230-3 (50/60)
950 = Bill of Material Product Variation
Z = Scroll Compressor
P = A/C Duty - R410A
D = Digital
91K = 91000 BTU
C = Model Series
E = POE Oil - AK/DA or 3MA
T = 3 Phase
F = Internal Inherent Protection - One protector, use with contactor
5 = 200/230-3 (50/60)
950 = Bill of Material Product Variation
Standard Features
- High efficiency – EER 11.0 plus
- Low Noise & Vibration levels
- Inherent motor protection
- Centrifugal oil pump
- For Heat Pump & Air Conditioning duty
- POE Oil
Documents
Specifications
- BrandCopeland
- Line Voltage (60Hz)240V
- Rated Voltage (60Hz)208/230
- RefrigerantR410A
- Refrigerant Oil TypePolyol Ester (POE)
- Variety TypeScroll
- Compressor Capacity91000 btu
- Frequency50Hz, 60Hz
- Motor Phase3
- Shipping Height28.25 in
- Shipping Length18.5 in
- Shipping Point37406
- Shipping Weight134 lb
- Shipping Width15.25 in
