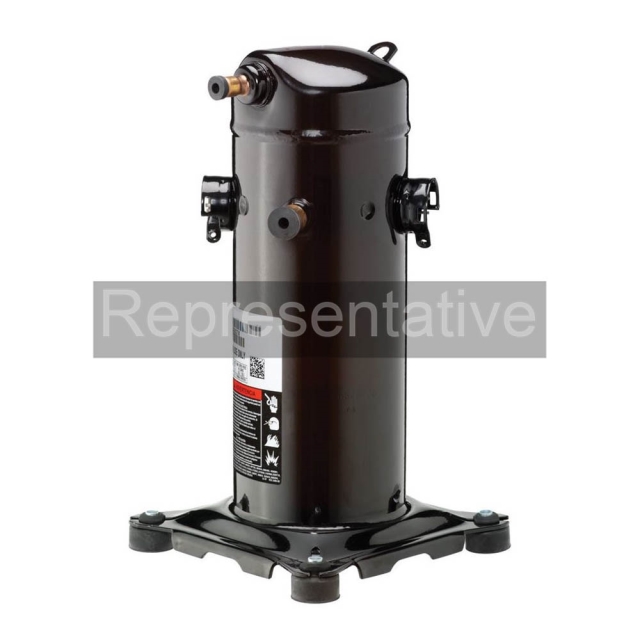

30000 BTU R410A 575-3 Phase Copeland Scroll Compressor
30000 BTU R410A 575-3 Phase Copeland Scroll Compressor
Description
ZPS30K5E-TFE-830
Z = Scroll Compressor
P = A/C Duty - R410A
S = Two Step
30K = 30000 BTU
5 = Model Series
E = POE Oil - AK/DA or 3MA
T = 3 Phase
F = Internal Inherent Protection - One protector, use with contactor
E = 500-3-50 / 575-3-60
830 = Bill of Material Product Variation
Z = Scroll Compressor
P = A/C Duty - R410A
S = Two Step
30K = 30000 BTU
5 = Model Series
E = POE Oil - AK/DA or 3MA
T = 3 Phase
F = Internal Inherent Protection - One protector, use with contactor
E = 500-3-50 / 575-3-60
830 = Bill of Material Product Variation
Standard Features
- High efficiency – EER 11.0 plus
- Low Noise & Vibration levels
- Inherent motor protection
- Centrifugal oil pump
- For Heat Pump & Air Conditioning duty
- POE Oil
Specifications
- BrandCopeland
- Line Voltage (60Hz)600V
- Rated Voltage (60Hz)575
- RefrigerantR410A
- Refrigerant Oil TypePolyol Ester (POE)
- Variety TypeScroll
- Compressor Capacity30000 btu
- Frequency60Hz
- Motor Phase3
- Run CapacitorN/A
- Shipping Height24 in
- Shipping Length15 in
- Shipping Point37406
- Shipping Weight756 lb
- Shipping Width20 in
- Start CapacitorN/A
