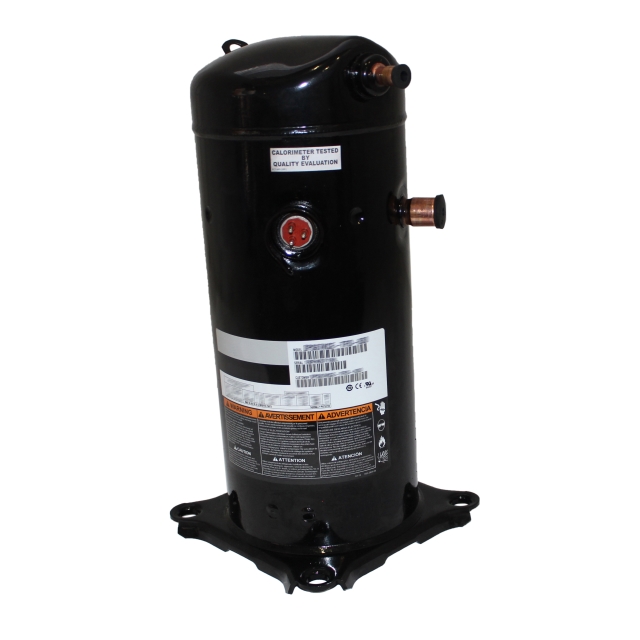

67000 BTU R410A 460-3 Phase Copeland Scroll Compressor
67000 BTU R410A 460-3 Phase Copeland Scroll Compressor
Description
ZPS67KCE-TFD-830
Z = Scroll Compressor
P = A/C Duty - R410A
S = Two Step
67K = 67000 BTU
C = Model Series
E = POE Oil - AK/DA or 3MA
T = 3 Phase
F = Internal Inherent Protection - One protector, use with contactor
D = 380/420-3-50 / 460-3-60
830 = Bill of Material Product Variation
Z = Scroll Compressor
P = A/C Duty - R410A
S = Two Step
67K = 67000 BTU
C = Model Series
E = POE Oil - AK/DA or 3MA
T = 3 Phase
F = Internal Inherent Protection - One protector, use with contactor
D = 380/420-3-50 / 460-3-60
830 = Bill of Material Product Variation
Standard Features
- High efficiency – EER 11.0 plus
- Low Noise & Vibration levels
- Inherent motor protection
- Centrifugal oil pump
- For Heat Pump & Air Conditioning duty
- POE Oil
Specifications
- BrandCopeland
- Capacity67800-83200
- CFM7.78
- Line Voltage (60Hz)480V
- Rated Voltage (60Hz)460
- RefrigerantR410A
- Suction Line Size7/8"
- Variety TypeScroll
- ApplicationA/C
- Compressor Capacity67000 btu
- Frequency50/60
- Height17.76 in
- Length10.23 in
- Liquid Line Size1/2 in
- LRA69
- Max RLA9.9
- Max Watts6520
- Motor Phase3
- Oil Capacity0 ml
- Oil Recharge3.375 pints
- Shipping Height17.76 in
- Shipping Length10.23 in
- Shipping Point37406
- Shipping Weight92 lb
- Shipping Width9.79 in
- TechnologyScroll
- TypeHerm
- Voltage380/420/460
- Weight92 lb
- Width9.79 in
