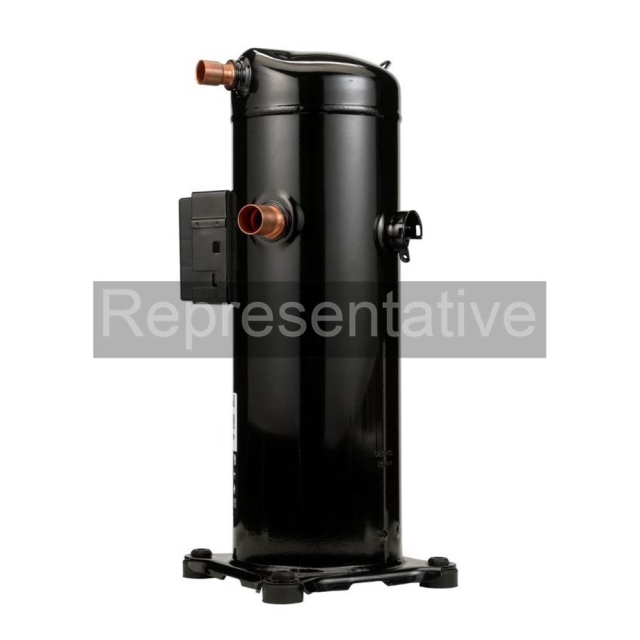

83000 BTU R410A 575-3 Phase Copeland Scroll Compressor
83000 BTU R410A 575-3 Phase Copeland Scroll Compressor
Description
ZPS83KCE-TFE-830
Z = Scroll Compressor
P = A/C Duty - R410A
S = Two Step
83K = 83000 BTU
C = Model Series
E = POE Oil - AK/DA or 3MA
T = 3 Phase
F = Internal Inherent Protection - One protector, use with contactor
E = 500-3-50 / 575-3-60
830 = Bill of Material Product Variation
Z = Scroll Compressor
P = A/C Duty - R410A
S = Two Step
83K = 83000 BTU
C = Model Series
E = POE Oil - AK/DA or 3MA
T = 3 Phase
F = Internal Inherent Protection - One protector, use with contactor
E = 500-3-50 / 575-3-60
830 = Bill of Material Product Variation
Standard Features
- High efficiency – EER 11.0 plus
- Low Noise & Vibration levels
- Inherent motor protection
- Centrifugal oil pump
- For Heat Pump & Air Conditioning duty
- POE Oil
Specifications
- BrandCopeland
- Capacity82300-101000
- CFM9.54
- Line Voltage (60Hz)600V
- Rated Voltage (60Hz)575
- RefrigerantR410A
- Suction Line Size7/8"
- Variety TypeScroll
- ApplicationA/C
- Compressor Capacity83000 btu
- Frequency60
- Height17.76 in
- Length10.23 in
- Liquid Line Size1/2 in
- LRA65
- Max RLA9
- Max Watts7990
- Motor Phase3
- Oil Capacity0 ml
- Oil Recharge3.375 pints
- Shipping Height19 in
- Shipping Length13 in
- Shipping Point37406
- Shipping Weight95 lb
- Shipping Width15 in
- TechnologyScroll
- TypeHerm
- Voltage575
- Weight90 lb
- Width9.79 in
