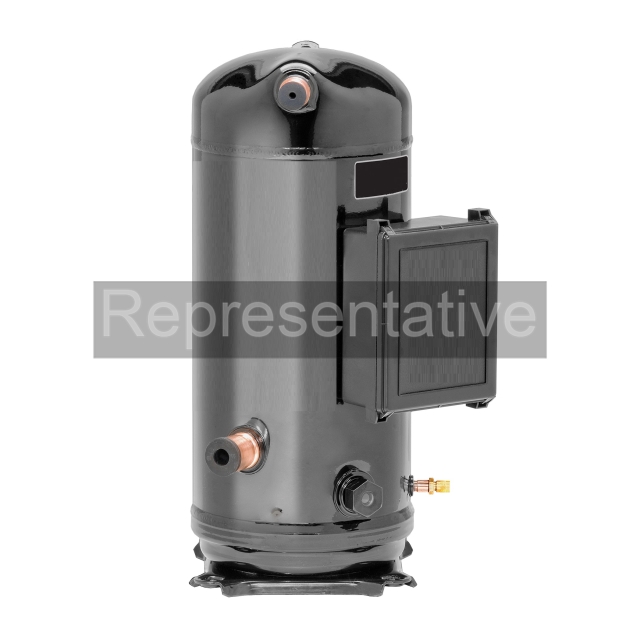

108000 BTU R22-R407C 460-3 Phase Copeland Scroll Compressor
108000 BTU R22-R407C 460-3 Phase Copeland Scroll Compressor
Description
ZR108KC-TFD-965
Z = Scroll Compressor
R = A/C Duty - R22, R134A, R407C
108K = 108000 BTU
C = Model Series
T = 3 Phase
F = Internal Inherent Protection - One protector, use with contactor
D = 380/420-3-50 / 460-3-60
965 = Bill of Material Product Variation
Z = Scroll Compressor
R = A/C Duty - R22, R134A, R407C
108K = 108000 BTU
C = Model Series
T = 3 Phase
F = Internal Inherent Protection - One protector, use with contactor
D = 380/420-3-50 / 460-3-60
965 = Bill of Material Product Variation
Standard Features
- High efficiency – EER 11.0 plus
- Low Noise & Vibration levels
- Inherent motor protection
- Centrifugal oil pump
- For Heat Pump & Air Conditioning duty
- POE Oil
Specifications
- BrandCopeland
- Capacity109000
- Discharge ConnectionHorizontal
- Discharge ID7/8"
- Line Voltage (60Hz)480V
- Rated Voltage (60Hz)460
- RefrigerantR22, R407C
- Suction ConnectionHorizontal
- Suction ID1-3/8"
- Variety TypeScroll
- ApplicationAC/HP
- Compressor Capacity108000 btu
- Compressor EER11.9
- Discharge Line Height19.73
- Frequency60Hz
- Height21 in
- Liquid Line Size7/8 H 19.73 in
- LRA114
- Max RLA17.3
- Motor Phase3
- Oil Recharge6.625 pints
- RLA17.3
- Run CapacitorN/A
- Shipping Height27 in
- Shipping Length16 in
- Shipping Point37406
- Shipping Weight156 lb
- Shipping Width19 in
- Suction Line Height4.81
- TechnologyScroll
- TypeHerm
- Voltage460
- Weight132 lb
