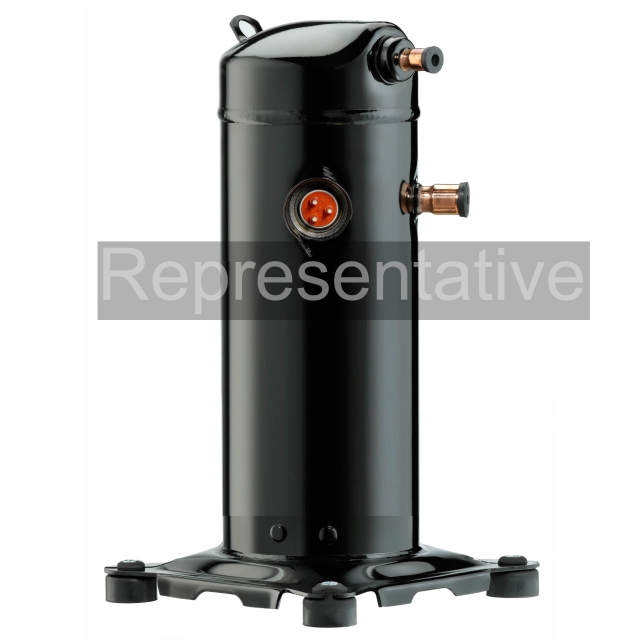

11000 BTU R22-R407C 208/230-3 Phase Copeland Scroll Compressor
11000 BTU R22-R407C 208/230-3 Phase Copeland Scroll Compressor
Description
ZR11M3E-TWC-961
Z = Scroll Compressor
R = A/C Duty - R22, R134A, R407C
11M = 110000 BTU
3 = Model Series
E = POE Oil - AK/DA or 3MA
T = 3 Phase
W = External Electronic Protection
C = 200-3-50 / 208/230-3-60
961 = Bill of Material Product Variation
Z = Scroll Compressor
R = A/C Duty - R22, R134A, R407C
11M = 110000 BTU
3 = Model Series
E = POE Oil - AK/DA or 3MA
T = 3 Phase
W = External Electronic Protection
C = 200-3-50 / 208/230-3-60
961 = Bill of Material Product Variation
Standard Features
- High efficiency – EER 11.0 plus
- Low Noise & Vibration levels
- Inherent motor protection
- Centrifugal oil pump
- For Heat Pump & Air Conditioning duty
- POE Oil
Specifications
- BrandCopeland
- Capacity108000
- Line Voltage (60Hz)240V
- Rated Voltage (60Hz)208/230
- RefrigerantR22, R407C
- Refrigerant Oil TypePolyol Ester (POE)
- Variety TypeScroll
- ApplicationAC/HP
- Compressor Capacity11000 btu
- Frequency50Hz, 60Hz
- Height21.17 in
- Length12.57 in
- Liquid Line Size1 1/4 Rotalock in
- LRA232
- Max RLA33.3
- Motor Phase3
- Oil Capacity0 ml
- Oil Recharge8.5625 pints
- Run CapacitorN/A
- Shipping Height21.17 in
- Shipping Length12.57 in
- Shipping Point37406
- Shipping Weight212 lb
- Shipping Width14.06 in
- TechnologyScroll
- TypeHerm
- Voltage208/230
- Weight212 lb
- Width14.06 in
