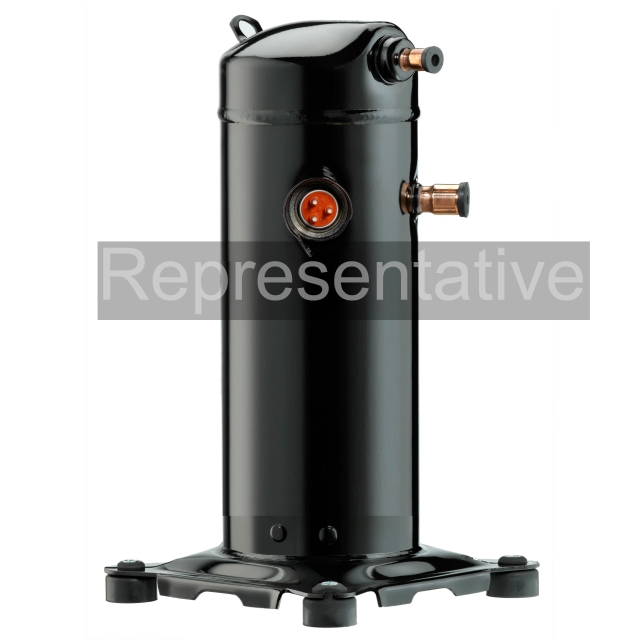

12000 BTU R22-R407C 208/230-3 Phase Copeland Scroll Compressor
12000 BTU R22-R407C 208/230-3 Phase Copeland Scroll Compressor
Description
ZR12M3-TWC-961
Z = Scroll Compressor
R = A/C Duty - R22, R134A, R407C
12M = 120000 BTU
3 = Model Series
T = 3 Phase
W = External Electronic Protection
C = 200-3-50 / 208/230-3-60
961 = Bill of Material Product Variation
Z = Scroll Compressor
R = A/C Duty - R22, R134A, R407C
12M = 120000 BTU
3 = Model Series
T = 3 Phase
W = External Electronic Protection
C = 200-3-50 / 208/230-3-60
961 = Bill of Material Product Variation
Standard Features
- High efficiency – EER 11.0 plus
- Low Noise & Vibration levels
- Inherent motor protection
- Centrifugal oil pump
- For Heat Pump & Air Conditioning duty
- POE Oil
Specifications
- BrandCopeland
- Capacity125000
- Discharge ConnectionRotalock
- Discharge ID1-1/4"
- Line Voltage (60Hz)240V
- Rated Voltage (60Hz)208/230
- RefrigerantR22, R407C
- Suction ConnectionRotalock
- Suction ID1-3/4"
- Variety TypeScroll
- ApplicationAC/HP
- Compressor Capacity12000 btu
- Compressor EER11.4
- Frequency50Hz, 60Hz
- Height21.2 in
- Liquid Line Size1 1/4 Rotalock in
- LRA278
- Max RLA37.4
- Motor Phase3
- Oil Recharge8.5625 pints
- RLA37.4
- Run CapacitorN/A
- Shipping Height28.6 in
- Shipping Length16.6 in
- Shipping Point37406
- Shipping Weight220 lb
- Shipping Width19 in
- TechnologyScroll
- TypeHerm
- Voltage208/230
- Weight221 lb
