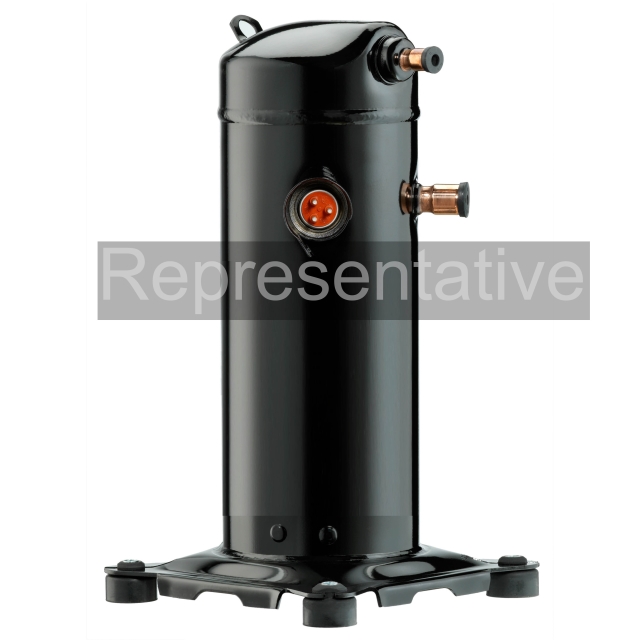

16000 BTU R22-R407C 208/230-3 Phase Copeland Scroll Compressor
16000 BTU R22-R407C 208/230-3 Phase Copeland Scroll Compressor
Description
Emerson Electric Co. (Copeland) Scroll™ 1-3/8" ODF Soldered Suction, 7/8" ODF Soldered Discharge, 200 VAC 50 Hz 3-Phase, 208 to 230 VAC 60 Hz, 160000 BTU/Hr, R-22/R-407C/R-134A, Scroll Compressor with POE Oil and External Electronic Protection for Air Conditioner
Specifications
- Used On Item: Air Conditioner
- Connection Size 1-3/8 Inch ODF Soldered (Suction), 7/8 Inch ODF Soldered (Discharge)
- Refrigerant Type R-22/R-407C/R-134A
- Nominal Capacity 160000 BTU/Hour
- Voltage Rating 200 Volt AC 50 Hertz, 208 to 230 Volt AC 60 Hertz 3-Phase
- Motor Type 3-Lead 3-Phase
- Cooling Efficiency 11.4 EER
- Includes POE Oil, External Electronic Protection
Replacement for
Documents
There are no documents available.
Specifications
- BrandCopeland
- Capacity149000
- CFM25.25
- Discharge ConnectionRotalock
- Discharge ID1/4"
- HP13
- Line Voltage (60Hz)240V
- Mounting ArrangementX
- Rated Voltage (60Hz)208/230
- RefrigerantR22, R407C
- Refrigerant Oil TypePolyol Ester (POE)
- Suction ConnectionRotalock
- Suction ID1-3/4"
- Variety TypeScroll
- ApplicationA/C, HP
- Compressor Capacity16000 btu
- Frequency50Hz, 60Hz
- Height21.17 in
- Length12.57 in
- Liquid Line Size1 1/4 in
- LRA350
- Max RLA48.9
- Motor Phase3
- Oil Capacity0 ml
- Oil Recharge8.5625 pints
- Run CapacitorN/A
- Shell Height21.5 in
- Shipping Height28.5 in
- Shipping Length17 in
- Shipping Point37406
- Shipping Weight234 lb
- Shipping Width18.5 in
- Suction Line Height1
- TechnologyScroll
- TypeHerm
- Voltage200/208/230
- Weight227 lb
- Width14.06 in
