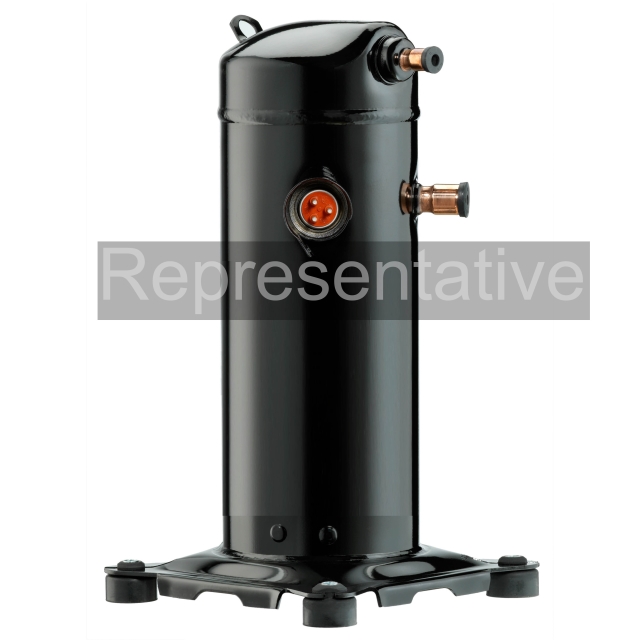

16000 BTU R22-R407C 460-3 Phase Copeland Scroll Compressor
16000 BTU R22-R407C 460-3 Phase Copeland Scroll Compressor
Description
ZR16M3E-TWD-961
Z = Scroll Compressor
R = A/C Duty - R22, R134A, R407C
16M = 160000 BTU
3 = Model Series
E = POE Oil - AK/DA or 3MA
T = 3 Phase
W = External Electronic Protection
D = 380/420-3-50 / 460-3-60
961 = Bill of Material Product Variation
Z = Scroll Compressor
R = A/C Duty - R22, R134A, R407C
16M = 160000 BTU
3 = Model Series
E = POE Oil - AK/DA or 3MA
T = 3 Phase
W = External Electronic Protection
D = 380/420-3-50 / 460-3-60
961 = Bill of Material Product Variation
Standard Features
- High efficiency – EER 11.0 plus
- Low Noise & Vibration levels
- Inherent motor protection
- Centrifugal oil pump
- For Heat Pump & Air Conditioning duty
- POE Oil
Specifications
- BrandCopeland
- Capacity154000
- Discharge ConnectionRotalock
- Discharge ID1/4"
- HP13.3
- Line Voltage (60Hz)480V
- Mounting ArrangementX
- Rated Voltage (60Hz)460
- RefrigerantR22, R407C
- Refrigerant Oil TypePolyol Ester (POE)
- Suction ConnectionRotalock
- Suction ID1-3/4"
- Variety TypeScroll
- ApplicationA/C, HP
- Compressor Capacity16000 btu
- Frequency50Hz, 60Hz
- Height21.17 in
- Length12.57 in
- Liquid Line Size7/8 in
- LRA158
- Max RLA27.2
- Max Watts13900
- Motor Phase3
- Oil Capacity0 ml
- Oil Recharge8.5625 pints
- Run CapacitorN/A
- Shell Height21.5 in
- Shipping Height25 in
- Shipping Length16 in
- Shipping Point37406
- Shipping Weight225 lb
- Shipping Width18 in
- Suction Line Height1
- TechnologyScroll
- TypeHerm
- Voltage460
- Weight227 lb
- Width14.06 in
