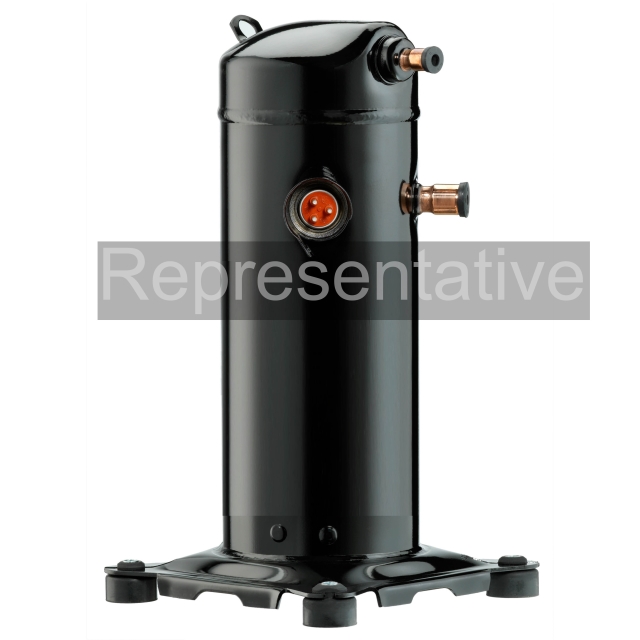

25000 BTU R22-R407C 208/230-3 Phase Copeland Scroll Compressor
25000 BTU R22-R407C 208/230-3 Phase Copeland Scroll Compressor
Description
ZR25K5E-TF5-830
Z = Scroll Compressor
R = A/C Duty - R22, R134A, R407C
25K = 25000 BTU
5 = Model Series
E = POE Oil - AK/DA or 3MA
T = 3 Phase
F = Internal Inherent Protection - One protector, use with contactor
5 = 200/230-3 (50/60)
830 = Bill of Material Product Variation
Z = Scroll Compressor
R = A/C Duty - R22, R134A, R407C
25K = 25000 BTU
5 = Model Series
E = POE Oil - AK/DA or 3MA
T = 3 Phase
F = Internal Inherent Protection - One protector, use with contactor
5 = 200/230-3 (50/60)
830 = Bill of Material Product Variation
Standard Features
- High efficiency – EER 11.0 plus
- Low Noise & Vibration levels
- Inherent motor protection
- Centrifugal oil pump
- For Heat Pump & Air Conditioning duty
- POE Oil
Specifications
- BrandCopeland
- Capacity25300
- Line Voltage (60Hz)240V
- Rated Voltage (60Hz)208/230
- RefrigerantR22, R407C
- Refrigerant Oil TypePolyol Ester (POE)
- Suction Line Size3/4"
- Variety TypeScroll
- ApplicationAC/HP
- Compressor Capacity25000 btu
- Frequency50Hz, 60Hz
- Height15.86 in
- Length9.5 in
- Liquid Line Size1/2 H 14.2 in
- LRA58.0
- Max RLA8.9
- Motor Phase3
- Oil Capacity0 ml
- Oil Recharge1.1875 pints
- Run CapacitorN/A
- Shipping Height25 in
- Shipping Length16 in
- Shipping Point37406
- Shipping Weight50 lb
- Shipping Width20 in
- TechnologyScroll
- TypeHerm
- Voltage208/230
- Weight49.1 lb
- Width9.5 in
