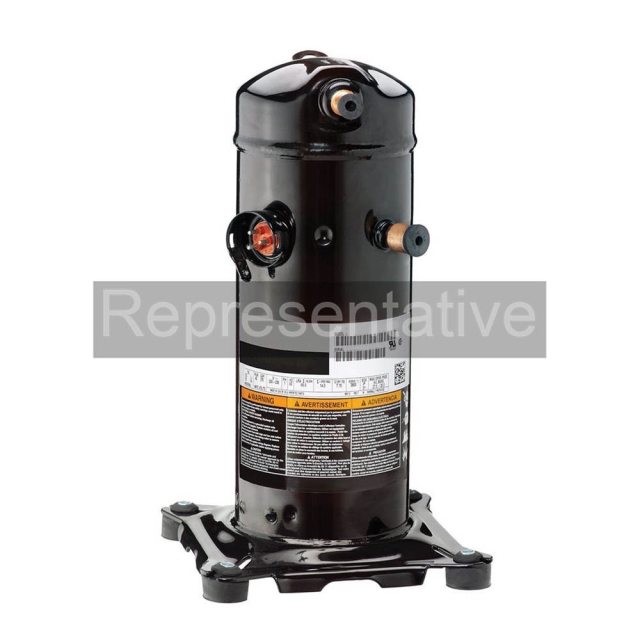

28000 BTU R22-R407C 208/230-3 Phase Copeland Scroll Compressor
28000 BTU R22-R407C 208/230-3 Phase Copeland Scroll Compressor
Description
ZR28K5E-TF5-830
Z = Scroll Compressor
R = A/C Duty - R22, R134A, R407C
28K = 28000 BTU
5 = Model Series
E = POE Oil - AK/DA or 3MA
T = 3 Phase
F = Internal Inherent Protection - One protector, use with contactor
5 = 200/230-3 (50/60)
830 = Bill of Material Product Variation
Z = Scroll Compressor
R = A/C Duty - R22, R134A, R407C
28K = 28000 BTU
5 = Model Series
E = POE Oil - AK/DA or 3MA
T = 3 Phase
F = Internal Inherent Protection - One protector, use with contactor
5 = 200/230-3 (50/60)
830 = Bill of Material Product Variation
Standard Features
- High efficiency – EER 11.0 plus
- Low Noise & Vibration levels
- Inherent motor protection
- Centrifugal oil pump
- For Heat Pump & Air Conditioning duty
- POE Oil
Specifications
- BrandCopeland
- Capacity28400
- Discharge ConnectionHorizontal
- Discharge ID1/2"
- Line Voltage (60Hz)240V
- Mounting ArrangementA
- Rated Voltage (60Hz)208/230
- RefrigerantR22, R407C
- Refrigerant Oil TypePolyol Ester (POE)
- Suction ConnectionHorizontal
- Suction ID3/4"
- Suction Line Size3/4"
- Variety TypeScroll
- ApplicationA/C
- Compressor Capacity28000 btu
- Discharge Line Height14.2
- Frequency50Hz, 60Hz
- Height15.9 in
- Length9.5 in
- Liquid Line Size1/2 H 14.2 in
- LRA73.0
- Max RLA11.1
- Motor Phase3
- Oil Capacity0 ml
- Oil Recharge1.1875 pints
- Run CapacitorN/A
- Shell Height15.9 in
- Shipping Height25 in
- Shipping Length16 in
- Shipping Point37406
- Shipping Weight54 lb
- Shipping Width20 in
- Suction Line Height10.1
- TechnologyScroll
- TypeHerm
- Voltage208/230
- Weight49.6 lb
- Width9.5 in
