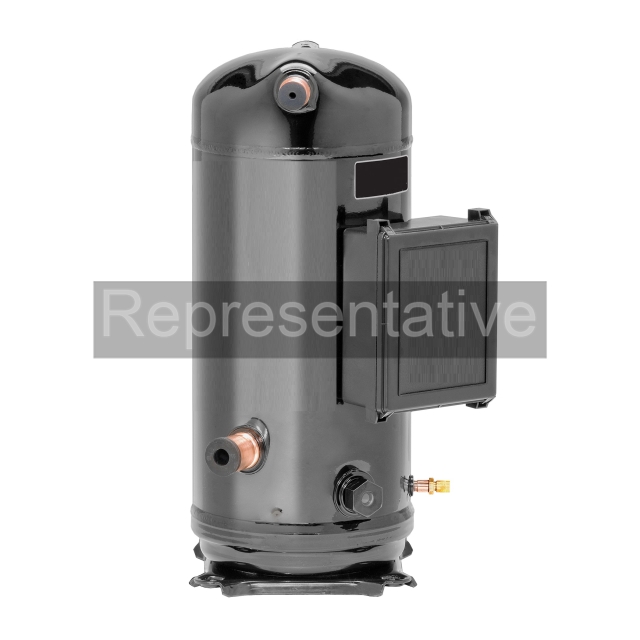

300000 BTU R22-R407C 208/230-3 Phase Copeland Scroll Compressor
300000 BTU R22-R407C 208/230-3 Phase Copeland Scroll Compressor
Description
ZR300KCE-TEC-951
Z = Scroll Compressor
R = A/C Duty - R22, R134A, R407C
300K = 300000 BTU
C = Model Series
E = POE Oil - AK/DA or 3MA
T = 3 Phase
E = External Module with CoreSenseTM Diagnostics/ Protection
C = 200-3-50 / 208/230-3-60
951 = Bill of Material Product Variation
Z = Scroll Compressor
R = A/C Duty - R22, R134A, R407C
300K = 300000 BTU
C = Model Series
E = POE Oil - AK/DA or 3MA
T = 3 Phase
E = External Module with CoreSenseTM Diagnostics/ Protection
C = 200-3-50 / 208/230-3-60
951 = Bill of Material Product Variation
Standard Features
- High efficiency – EER 11.0 plus
- Low Noise & Vibration levels
- Inherent motor protection
- Centrifugal oil pump
- For Heat Pump & Air Conditioning duty
- POE Oil
Specifications
- BrandCopeland
- Capacity296000
- HP25
- Line Voltage (60Hz)240V
- Rated Voltage (60Hz)208/230
- RefrigerantR22, R407C
- Refrigerant Oil TypePolyol Ester (POE)
- Variety TypeScroll
- ApplicationA/C
- Compressor Capacity300000 btu
- Frequency50Hz, 60Hz
- Height28.5 in
- Length17.6 in
- Liquid Line Size1 3/8 in
- LRA500
- Max RLA100
- Max Watts25300
- Motor Phase3
- Oil Capacity0 ml
- Oil Recharge12.6875 pints
- Shipping Height29 in
- Shipping Length36 in
- Shipping Point37406
- Shipping Weight436 lb
- Shipping Width30 in
- TechnologyScroll
- TypeHerm
- Voltage208/230
- Weight406 lb
- Width16.8 in
