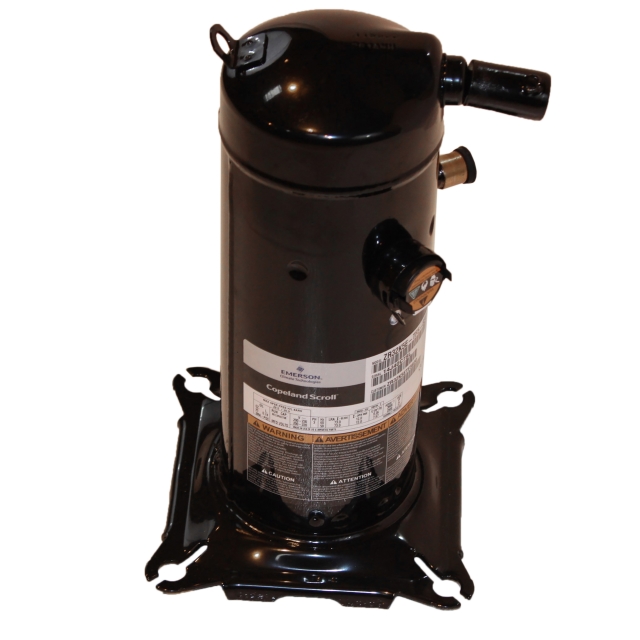

32000 BTU R22-R407C 208/230-3 Phase Copeland Scroll Compressor
32000 BTU R22-R407C 208/230-3 Phase Copeland Scroll Compressor
Description
Emerson Electric Co. (Copeland) Scroll™ 5.5" x 15.3", 3/4" ODF Soldered Suction, 1/2" ODF Soldered Discharge, 200 to 220 VAC 50 Hz 3-Phase, 200 to 230 VAC 60 Hz, 12/6.4 RLA, 32000 BTU/Hr, R-22/R-407C/R-134A, Scroll Compressor with POE Oil and Internal Inherent Protection for Air Conditioner
Specifications
- Size: 5.5 Inch Diameter x 15.3 Inch Height
- Used On Item: Air Conditioner
- Connection Size 3/4 Inch ODF Soldered (Suction), 1/2 Inch ODF Soldered (Discharge)
- Refrigerant Type R-22/R-407C/R-134A
- Nominal Capacity 32000 BTU/Hour
- Voltage Rating 200 to 220 Volt AC 50 Hertz, 200 to 230 Volt AC 60 Hertz 3-Phase
- Current Rating 12/6.4 Amp (RLA)
- Motor Type 3-Lead 3-Phase
- Cooling Efficiency 11.2 EER
- Includes POE Oil, Internal Inherent Protection
Replacement for
Specifications
- BrandCopeland
- Capacity32600
- Discharge ConnectionHorizontal
- Discharge ID1/2"
- Line Voltage (60Hz)240V
- Mounting ArrangementA
- Rated Voltage (60Hz)208/230
- RefrigerantR22, R407C
- Refrigerant Oil TypePolyol Ester (POE)
- Suction ConnectionHorizontal
- Suction ID3/4"
- Suction Line Size3/4"
- Variety TypeScroll
- ApplicationA/C
- Compressor Capacity32000 btu
- Discharge Line Height14.2
- Frequency50Hz, 60Hz
- Height15.9 in
- Length9.5 in
- Liquid Line Size1/2 H 14.2 in
- LRA73.0
- Max RLA12
- Motor Phase3
- Oil Capacity0 ml
- Oil Recharge1.1875 pints
- Run CapacitorN/A
- Shell Height15.9 in
- Shipping Height20 in
- Shipping Length15 in
- Shipping Point37406
- Shipping Weight53.7 lb
- Shipping Width13.4 in
- Suction Line Height10.1
- TechnologyScroll
- TypeHerm
- Voltage208/230
- Weight49.1 lb
- Width9.5 in
