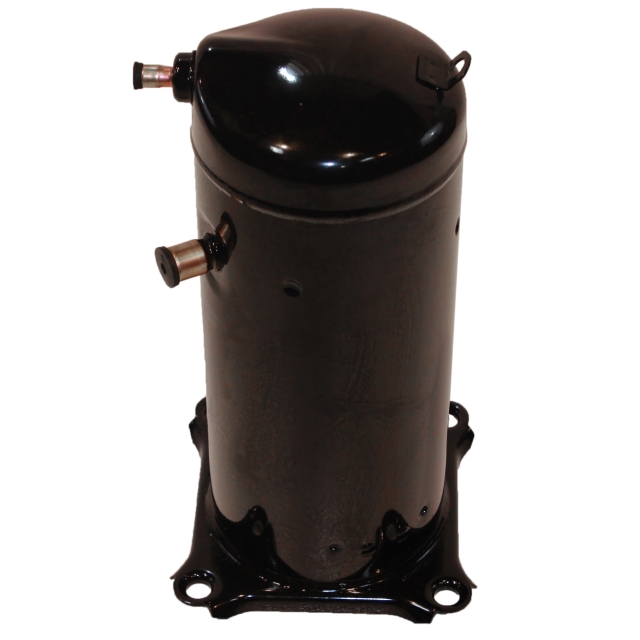

61000 BTU R22-R407C 208/230-1 Phase Copeland Scroll Compressor
61000 BTU R22-R407C 208/230-1 Phase Copeland Scroll Compressor
Description
Emerson Electric Co. (Copeland) Scroll™ 7.3" x 18", 7/8" ODF Soldered Suction, 1/2" ODF Soldered Discharge, 200 VAC 50 Hz 1-Phase, 208 to 230 VAC 60 Hz, 32.1 RLA, 61000 BTU/Hr, R-22/R-407C/R-134A, Scroll Compressor with POE Oil and Internal Inherent Protection for Air Conditioner
Specifications
- Size: 7.3 Inch Diameter x 18 Inch Height
- Used On Item: Air Conditioner
- Connection Size 7/8 Inch ODF Soldered (Suction), 1/2 Inch ODF Soldered (Discharge)
- Refrigerant Type R-22/R-407C/R-134A
- Nominal Capacity 61000 BTU/Hour
- Voltage Rating 200 Volt AC 50 Hertz, 208 to 230 Volt AC 60 Hertz 1-Phase
- Current Rating 32.1 Amp (RLA)
- Motor Type 80 Microfarad at 370 Volt 1-Phase PSC
- Includes POE Oil, Internal Inherent Protection
Specifications
- BrandCopeland
- Capacity62000
- Discharge ConnectionHorizontal
- Discharge ID1/2"
- Line Voltage (60Hz)240V
- Mounting ArrangementA
- Rated Voltage (60Hz)208/230
- RefrigerantR22, R407C
- Refrigerant Oil TypePolyol Ester (POE)
- Suction ConnectionHorizontal
- Suction ID7/8"
- Suction Line Size7/8"
- Variety TypeScroll
- Compressor Capacity61000 btu
- Discharge Line Height16.13
- Frequency50Hz, 60Hz
- Height17.8 in
- Length9.69 in
- Liquid Line Size1/2 H 16.13 in
- LRA148.0
- Max RLA32.1
- Motor Phase1
- Oil Capacity0 ml
- Oil Recharge3.25 pints
- Run Capacitor80/370
- Shell Height17.8 in
- Shipping Height20.2 in
- Shipping Length14.3 in
- Shipping Point37406
- Shipping Weight93.15 lb
- Shipping Width14.8 in
- Suction Line Height11.68
- TechnologyScroll
- TypeHerm
- Voltage208/230
- Weight90 lb
- Width9.69 in
