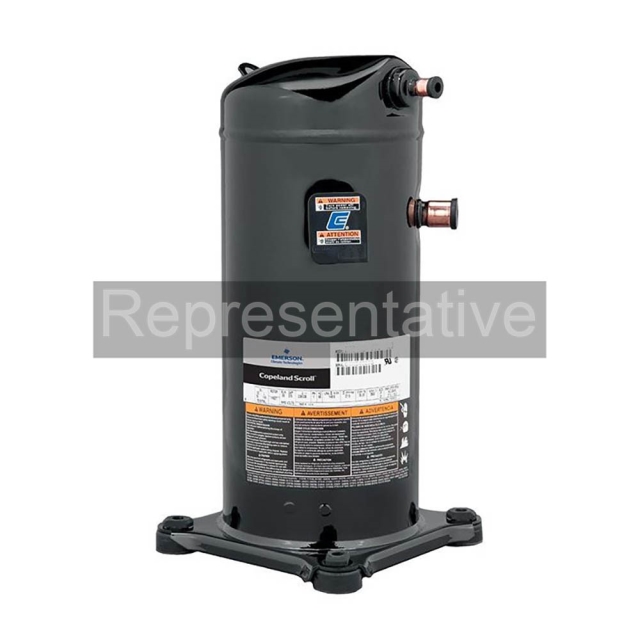

61000 BTU R22-R407C 208/230-3 Phase Copeland Scroll Compressor
61000 BTU R22-R407C 208/230-3 Phase Copeland Scroll Compressor
Description
ZR61K3E-TF5-950
Z = Scroll Compressor
R = A/C Duty - R22, R134A, R407C
61K = 61000 BTU
3 = Model Series
E = POE Oil - AK/DA or 3MA
T = 3 Phase
F = Internal Inherent Protection - One protector, use with contactor
5 = 200/230-3 (50/60)
950 = Bill of Material Product Variation
Z = Scroll Compressor
R = A/C Duty - R22, R134A, R407C
61K = 61000 BTU
3 = Model Series
E = POE Oil - AK/DA or 3MA
T = 3 Phase
F = Internal Inherent Protection - One protector, use with contactor
5 = 200/230-3 (50/60)
950 = Bill of Material Product Variation
Standard Features
- High efficiency – EER 11.0 plus
- Low Noise & Vibration levels
- Inherent motor protection
- Centrifugal oil pump
- For Heat Pump & Air Conditioning duty
- POE Oil
Specifications
- BrandCopeland
- Capacity62000
- HP5
- Line Voltage (60Hz)240V
- Rated Voltage (60Hz)208/230
- RefrigerantR22, R407C
- Refrigerant Oil TypePolyol Ester (POE)
- Suction Line Size7/8"
- Variety TypeScroll
- ApplicationA/C
- Compressor Capacity61000 btu
- Frequency50Hz, 60Hz
- Height17.24 in
- Length9.69 in
- Liquid Line Size1/2 in
- LRA137.0
- Max RLA19.3
- Motor Phase3
- Oil Capacity0 ml
- Oil Recharge3.875 pints
- Shipping Height20 in
- Shipping Length13.25 in
- Shipping Point37406
- Shipping Weight87 lb
- Shipping Width14.25 in
- TechnologyScroll
- TypeHerm
- Voltage200/220/230
- Weight84 lb
- Width9.69 in
