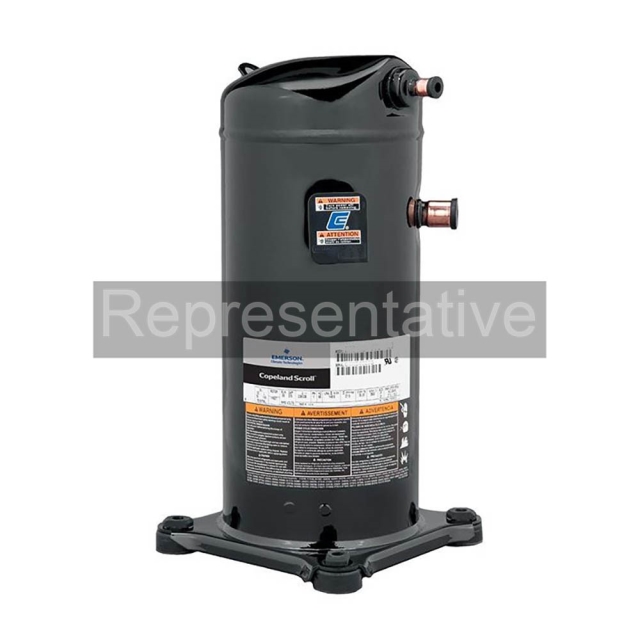

68000 BTU R22-R407C 208/230-1 Phase Copeland Scroll Compressor
68000 BTU R22-R407C 208/230-1 Phase Copeland Scroll Compressor
Description
ZR68KCE-PFV-950
Z = Scroll Compressor
R = A/C Duty - R22, R134A, R407C
68K = 68000 BTU
C = Model Series
E = POE Oil - AK/DA or 3MA
P = 1 Phase
F = Internal Inherent Protection - One protector, use with contactor
V = 200-1-50 / 208/230-1-60
950 = Bill of Material Product Variation
Z = Scroll Compressor
R = A/C Duty - R22, R134A, R407C
68K = 68000 BTU
C = Model Series
E = POE Oil - AK/DA or 3MA
P = 1 Phase
F = Internal Inherent Protection - One protector, use with contactor
V = 200-1-50 / 208/230-1-60
950 = Bill of Material Product Variation
Standard Features
- High efficiency – EER 11.0 plus
- Low Noise & Vibration levels
- Inherent motor protection
- Centrifugal oil pump
- For Heat Pump & Air Conditioning duty
- POE Oil
Specifications
- BrandCopeland
- Capacity65800
- Discharge ConnectionHorizontal
- Discharge ID1/2"
- Line Voltage (60Hz)240V
- Mounting ArrangementA
- Rated Voltage (60Hz)208/230
- RefrigerantR22, R407C
- Refrigerant Oil TypePolyol Ester (POE)
- Suction ConnectionHorizontal
- Suction ID7/8"
- Suction Line Size7/8"
- Variety TypeScroll
- ApplicationA/C
- Compressor Capacity68000 btu
- Discharge Line Height16.13
- Frequency50Hz, 60Hz
- Height17.8 in
- Length9.69 in
- Liquid Line Size1/2 in
- LRA1
- Max RLA32.1
- Motor Phase1
- Oil Capacity0 ml
- Oil Recharge3.5 pints
- Run Capacitor80/440
- Shell Height17.8 in
- Shipping Height20 in
- Shipping Length13 in
- Shipping Point37406
- Shipping Weight120 lb
- Shipping Width14.5 in
- Suction Line Height11.68
- TechnologyScroll
- TypeHerm
- Voltage208/230
- Weight89 lb
- Width9.69 in
