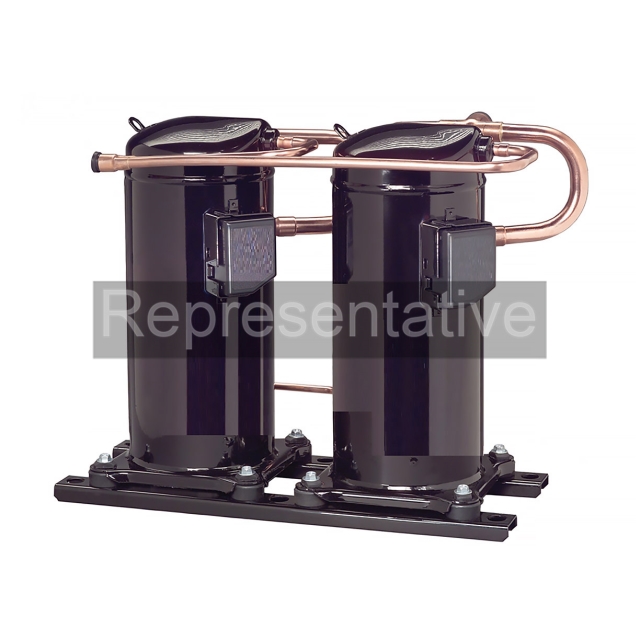

122000 BTU R22-R407C 460-3 Phase Copeland Scroll Compressor
122000 BTU R22-R407C 460-3 Phase Copeland Scroll Compressor
Description
ZRT122K3E-TFD-831
Z = Scroll Compressor
R = A/C Duty - R22, R134A, R407C
T = Even Tandem
122K = 122000 BTU
3 = Model Series
E = POE Oil - AK/DA or 3MA
T = 3 Phase
F = Internal Inherent Protection - One protector, use with contactor
D = 380/420-3-50 / 460-3-60
831 = Bill of Material Product Variation
Z = Scroll Compressor
R = A/C Duty - R22, R134A, R407C
T = Even Tandem
122K = 122000 BTU
3 = Model Series
E = POE Oil - AK/DA or 3MA
T = 3 Phase
F = Internal Inherent Protection - One protector, use with contactor
D = 380/420-3-50 / 460-3-60
831 = Bill of Material Product Variation
Standard Features
- High efficiency – EER 11.0 plus
- Low Noise & Vibration levels
- Inherent motor protection
- Centrifugal oil pump
- For Heat Pump & Air Conditioning duty
- POE Oil
Specifications
- BrandCopeland
- Capacity121000
- Discharge ConnectionStub
- Discharge ID3/4"
- Line Voltage (60Hz)480V
- Mounting ArrangementA
- Rated Voltage (60Hz)460
- RefrigerantR22, R407C
- Refrigerant Oil TypePolyol Ester (POE)
- Suction ConnectionStub
- Suction ID1-1/8"
- Suction Line Size1-1/8"
- Variety TypeScroll
- ApplicationA/C, HP
- Compressor Capacity122000 btu
- Frequency50Hz, 60Hz
- Height18.8 in
- Length24.65 in
- Liquid Line Size3/4 in
- Max RLA1
- Motor Phase3
- Oil Capacity0 ml
- Oil Recharge6.625 pints
- Shell Height18.8 in
- Shipping Height33 in
- Shipping Length41.5 in
- Shipping Point37406
- Shipping Weight218 lb
- Shipping Width27 in
- TechnologyScroll
- TypeHerm
- Voltage460
- Weight223 lb
- Width11.69 in
