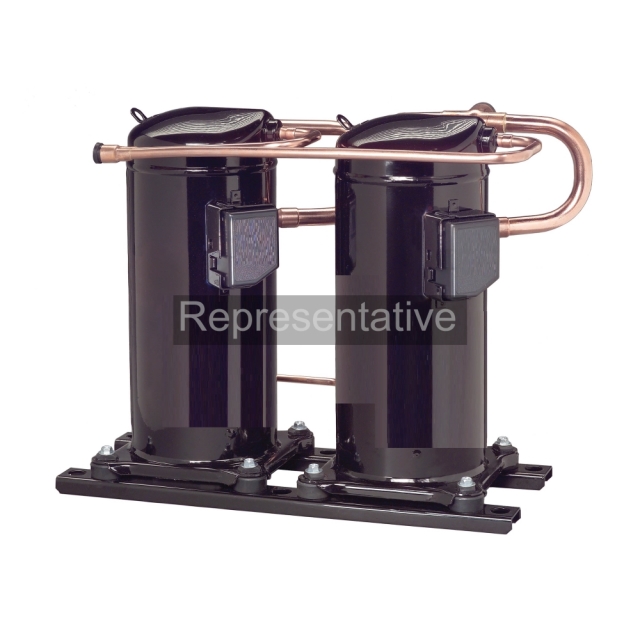

122000 BTU R22-R407C 460-3 Phase Copeland Scroll Compressor
122000 BTU R22-R407C 460-3 Phase Copeland Scroll Compressor
Description
ZRT122K3E-TFD-950
Z = Scroll Compressor
R = A/C Duty - R22, R134A, R407C
T = Even Tandem
122K = 122000 BTU
3 = Model Series
E = POE Oil - AK/DA or 3MA
T = 3 Phase
F = Internal Inherent Protection - One protector, use with contactor
D = 380/420-3-50 / 460-3-60
950 = Bill of Material Product Variation
Z = Scroll Compressor
R = A/C Duty - R22, R134A, R407C
T = Even Tandem
122K = 122000 BTU
3 = Model Series
E = POE Oil - AK/DA or 3MA
T = 3 Phase
F = Internal Inherent Protection - One protector, use with contactor
D = 380/420-3-50 / 460-3-60
950 = Bill of Material Product Variation
Standard Features
- High efficiency – EER 11.0 plus
- Low Noise & Vibration levels
- Inherent motor protection
- Centrifugal oil pump
- For Heat Pump & Air Conditioning duty
- POE Oil
Specifications
- BrandCopeland
- Line Voltage (60Hz)480V
- Rated Voltage (60Hz)460
- RefrigerantR22, R407C
- Refrigerant Oil TypePolyol Ester (POE)
- Variety TypeScroll
- Compressor Capacity122000 btu
- Frequency50Hz, 60Hz
- Motor Phase3
