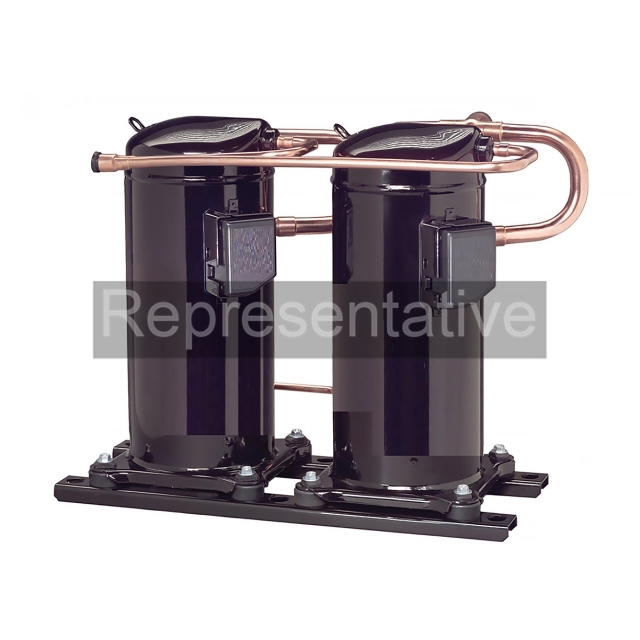

380000 BTU R22-R407C 460-3 Phase Copeland Scroll Compressor
380000 BTU R22-R407C 460-3 Phase Copeland Scroll Compressor
Description
Emerson Electric Co. (Copeland) Scroll™ 380 to 240 VAC 50 Hz 3-Phase, 460 VAC 60 Hz, 38000 BTU/Hr, R-22/R-407C/R-134A, Scroll Compressor with POE Oil and External Enhanced Protection for Air Conditioner
Specifications
- Used On Item: Air Conditioner
- Modulation Even Tandem
- Refrigerant Type R-22/R-407C/R-134A
- Nominal Capacity 38000 BTU/Hour
- Voltage Rating 380 to 240 Volt AC 50 Hertz, 460 Volt AC 60 Hertz 3-Phase
- Motor Type 3-Lead 3-Phase
- Cooling Efficiency 11.3 EER
- Includes POE Oil, External Enhanced Protection
Documents
There are no documents available.
Specifications
- BrandCopeland
- Capacity361000
- Line Voltage (60Hz)480V
- Rated Voltage (60Hz)460
- RefrigerantR22, R407C
- Refrigerant Oil TypePolyol Ester (POE)
- Variety TypeScroll
- ApplicationA/C, HP
- Compressor Capacity380000 btu
- Frequency50Hz, 60Hz
- Height23.5 in
- Length25 in
- Liquid Line Size1 3/8 in
- Motor Phase3
- Oil Capacity0 ml
- Shipping Height48 in
- Shipping Length44 in
- Shipping Weight580 lb
- Shipping Width34 in
- Suction Line Size1 5/8 in
- TechnologyScroll
- TypeHerm
- Voltage380/420/460
- Weight289 lb
- Width12.3 in
