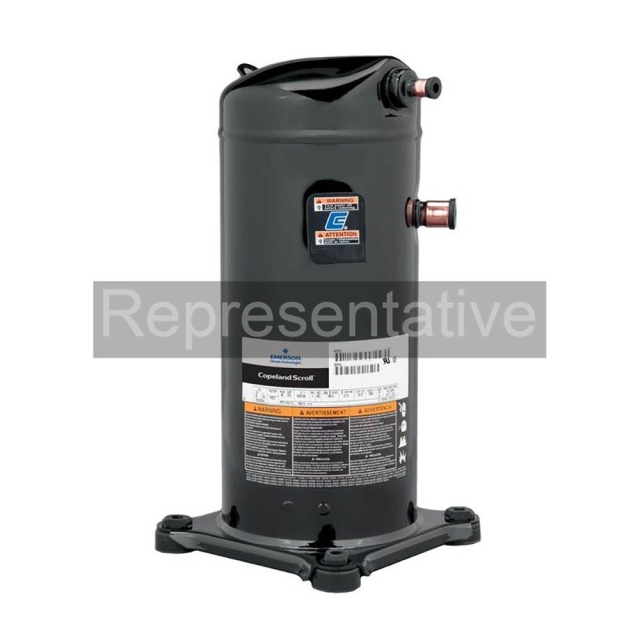

COMPRESSOR (380V)
COMPRESSOR (380V)
Description
ZP91KCE-TF7-950
Z = Scroll Compressor
P = A/C Duty - R410A
91K = 91000 BTU
C = Model Series
E = POE Oil - AK/DA or 3MA
T = 3 Phase
F = Internal Inherent Protection - One protector, use with contactor
7 = 380-3-60
950 = Bill of Material Product Variation
Z = Scroll Compressor
P = A/C Duty - R410A
91K = 91000 BTU
C = Model Series
E = POE Oil - AK/DA or 3MA
T = 3 Phase
F = Internal Inherent Protection - One protector, use with contactor
7 = 380-3-60
950 = Bill of Material Product Variation
Standard Features
- High efficiency – EER 11.0 plus
- Low Noise & Vibration levels
- Inherent motor protection
- Centrifugal oil pump
- For Heat Pump & Air Conditioning duty
- POE Oil
Specifications
- BrandCopeland
- Capacity90500
- Line Voltage (60Hz)480V
- Rated Voltage (60Hz)380
- RefrigerantR410A
- Refrigerant Oil TypePolyol Ester (POE)
- Suction Line Size7/8"
- Variety TypeScroll
- Compressor Capacity91000 btu
- Frequency60
- Height17.45 in
- Liquid Line Size3/4 H 16.17 in
- LRA123
- Max RLA17.2
- Motor Phase3
- Oil Capacity0 ml
- Oil Recharge3.5 pints
- Run CapacitorN/A
- Shipping Height20 in
- Shipping Length13 in
- Shipping Point37406
- Shipping Weight105 lb
- Shipping Width15 in
- TechnologyScroll
- TypeHerm
- Voltage380
- Weight90 lb
