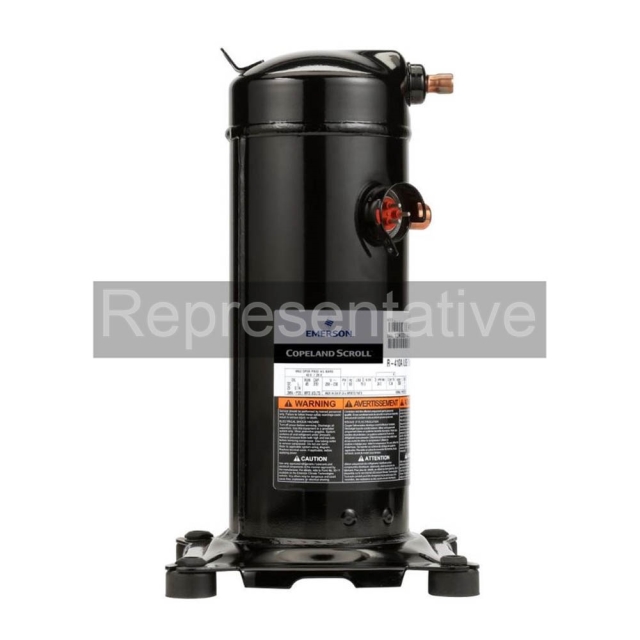

COMPRESSOR 460V 3PH
COMPRESSOR 460V 3PH
Description
ZP49K5E-TFD-800
Z = Scroll Compressor
P = A/C Duty - R410A
49K = 49000 BTU
5 = Model Series
E = POE Oil - AK/DA or 3MA
T = 3 Phase
F = Internal Inherent Protection - One protector, use with contactor
D = 380/420-3-50 / 460-3-60
800 = Bill of Material Product Variation
Z = Scroll Compressor
P = A/C Duty - R410A
49K = 49000 BTU
5 = Model Series
E = POE Oil - AK/DA or 3MA
T = 3 Phase
F = Internal Inherent Protection - One protector, use with contactor
D = 380/420-3-50 / 460-3-60
800 = Bill of Material Product Variation
Standard Features
- High efficiency – EER 11.0 plus
- Low Noise & Vibration levels
- Inherent motor protection
- Centrifugal oil pump
- For Heat Pump & Air Conditioning duty
- POE Oil
Specifications
- BrandCopeland
- Line Voltage (60Hz)480V
- Rated Voltage (60Hz)460
- RefrigerantR410A
- Refrigerant Oil TypePolyol Ester (POE)
- Variety TypeScroll
- Compressor Capacity49000 btu
- Frequency50Hz, 60Hz
- Motor Phase3
- Run CapacitorN/A
- Start CapacitorN/A
