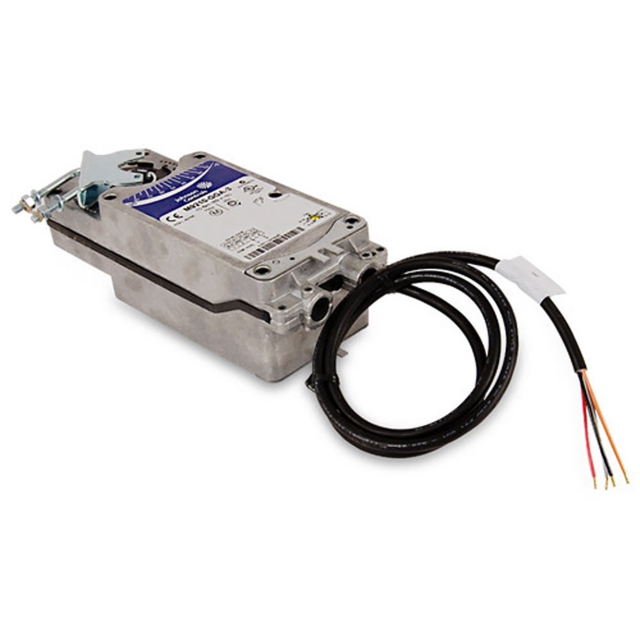

DAMPER ACTUATOR

Name: DAMPER ACTUATOR
Brand: Factory Authorized Part

SKU:M9220-HGA-3

SKU:M9220-HGA-3

QTY

Description

Available torques of 177 lb in (20 Nm) for single actuators, 354 lb in (40 Nm) for two models, and 531 lb in (60 Nm) for three models mounted in tandem offer a selection that is most suitable for the application.
Reversible mounting design simplifies installation and enables the actuator to spring return in either direction.
Electronic stall detection throughout entire rotation range extends the life of the actuator by deactivating the actuator motor when an overload condition is detected.
Removable coupler adapts to a shorter damper shaft.
Integral 48 in. (1.2 m) halogen-free cable swith colored and numbered conductors simplify field wiring.
Integral auxiliary switches (xxC Models) provide one fixed and one adjustable switch point with line voltage capability.
NEMA 2 (IP54) rated aluminum enclosure protects the internal components of the actuator from dirt and moisture.
Easy-to-use locking manual override with auto release and crank storage allows for manual positioning of the actuator hub.
Integral connectors for 3/8 in. flexible metal conduit simplify installation and field wiring.
Microprocessor-controlled brushless DC motor (-AGx, -GGx, and -HGx types) provides constant run-time independent of torque.

The M9220-xxx-3 Electric Spring-Return Actuators provide reliable control of dampersand valves in HVAC systems.
The M9220-xxx-3 Actuators are available for use with on/off, floating, and proportional controllers.
