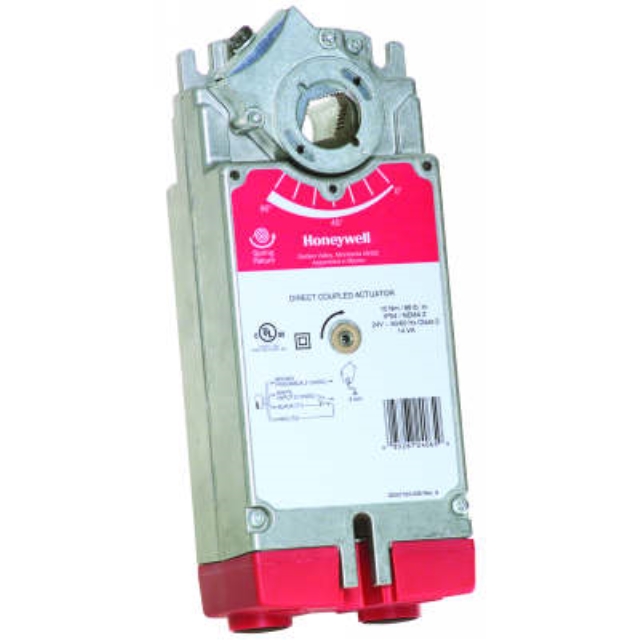

TWO POSITION DAMPER ACTUATOR W/ SPRING RETURN
TWO POSITION DAMPER ACTUATOR W/ SPRING RETURN
Description
Honeywell International Inc. / Resideo Technologies, Inc. 24 VAC/VDC, 50/60 Hz, 14 VA Driving/5 VA Holding, 88 Lb-Inch, NEMA 2, Aluminum, Spring Return, On/Off, SPDT, Direct Coupled, Floating, Damper Actuator
Features & Benefits
- Brushless DC Submotor with Electronic Stall Protection for Floating/Modulating Model
- Brush DC Submotor with Electronic Stall Protection for 2-Position Model
- Self-Centering Shaft Adapter (Shaft Coupling) for Wide Range of Shaft Size
- Access Cover to Facilitate Connectivity
- Shaft Position Indicator and Scale
- Manual Winding Capability with Locking Function
Specifications
- Type: On/Off, SPDT, Direct Coupled, Floating
- Operation Type: Spring Return
- Voltage Rating: 24 Volt AC/DC
- Maximum AC Voltage: 24 Volt
- Maximum DC Voltage: 24 Volt
- Frequency Rating: 50/60 Hertz
- Power Rating: 14 Volt Amp (Driving), 5 Volt Amp (Holding)
- Torque: 88 Inch-Pound
- Enclosure: NEMA 2
- Size: 3.94 Inch Width x 2.95 Inch Depth x 9.72 Inch Height
- Shaft Diameter: 3/8 to 1.06 Inch
- Body Material: Aluminum
- Operating Temperature: -40 to 140 Deg F
- Application: HVAC System
- Approval: UL 873, CUL C22.2, CE, C-Tick N314
- Connection Type Enclosed Screw Terminal Strip
- Control Signal Range 2 to 10 Volt DC
- Timing 20 Second
- Includes Mounting Bracket, Self-Centering Shaft Adapter
Documents
Specifications
- BrandHoneywell
