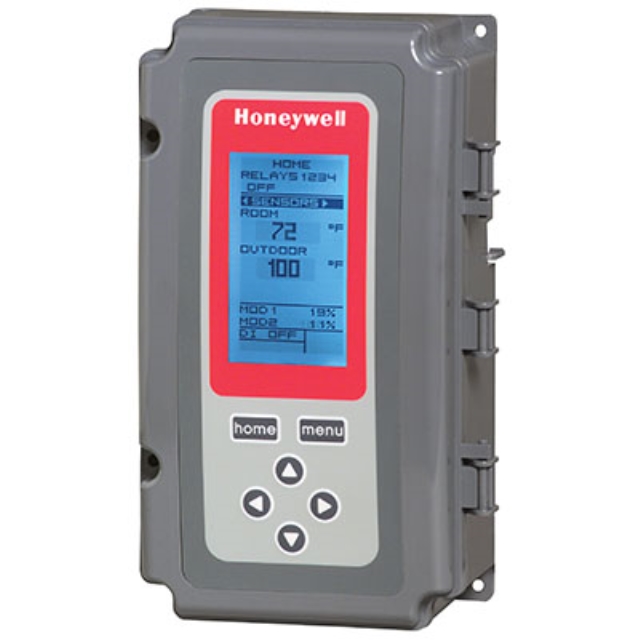

T775 electronic remote temperature controller, is the next generation in commercial/agricultural control - capable of remote sensing temperature, humidity, pressure, etc., and providing switched and/or proportional outputs to various types of loads.

Features & Benefits

• Save Time on Installations with the Easy to Use Graphical Interface, Large Display and the Intuitive Programming
• Use the Time Clock Scheduler or Digital Input to Control the Setback and Disable Output Options to Help Save Energy
• Protect Equipment from Freezing or Overheating on Models with the Modulating High or Low Limit Control Option
• Get Pinpoint Control on Modulating Outputs by Setting the Integral and Derivative Times (Pi or Pid)
• Configure Models with Reset in a Few Easy Steps
• Control Floating Actuators with Floating Outputs on Select Models
• Eliminate the Need for a Separate Time Delay Device and Protect Equipment with the Minimum Off Time

Specifications

• Type: 1/4 Inch Diameter x 2 Inch Length Bulb, Stand-Alone
• Temperature Range: -40 to 125 Deg F at 50 Hertz, -40 to 140 Deg F at 60 Hertz
• Contact Rating: 10 Amp at 24 Volt AC (Resistive), 9.8 Amp at 120 Volt AC/4.9 Amp at 240 Volt AC (Full Load), 58.8 Amp at 120 Volt AC/29.4 Amp at 240 Volt AC (Locked Rotor), 125 Volt Amp at 120/240 Volt AC (Pilot Duty), 1/2 HP at 120/240 Volt AC
• Contact Configuration: (4) SPDT
• Connection Type: Conduit
• Enclosure: NEMA 1
• Application: Heating, Cooling, Boiler, Chiller
• Approval: UL (Canada and US), CUL, CE, C-Tick
• Overall Dimension 4-13/32 Inch Width x 2-15/16 Inch Depth x 8-5/32 Inch Height
• Power Consumption 8 Volt Amp at 60 Hertz/10 Volt Amp at 50 Hertz
• Differential Temperature Rating 1 to 150 Deg F
• Set Point Temperature Rating -40 to 248 Deg F
• Number of Sensor Inputs 3
• Sensor Element 1097 Ohm PTC at 77 Deg F
• Maximum Distance to Sensor up to 1000 Foot
• Output Type Relay with Reset
• Includes 50021579-001 Sensor
