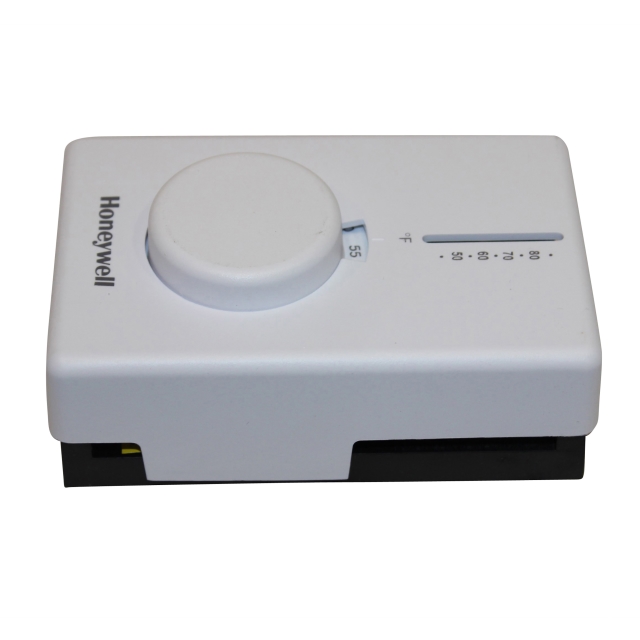

Honeywell Non-Programmable, 1 Heat Thermostat
Honeywell Non-Programmable, 1 Heat Thermostat
Description
Honeywell International Inc. / Resideo Technologies, Inc. 120/208/240/277 VAC 60 Hz, 50 to 80 Deg F Setting Temperature, Vapor Filled Dual Diaphragm Sensor Element, Premier White, Non-Programmable, High Performance, Line Voltage, 1-Heat, Electric Heat Thermostat
High Performance Electric Heat Thermostats provide precise line voltage control of resistive-rated electric heating equipment.
Features & Benefits
- For Control of Resistive Rated Baseboard Electric Heaters
- Extremely Sensitive to Temperature Changes
- Replace Virtually All Standard Wall Mounted Line Voltage Thermostats
- Color Coded Leads Allow Easy Installation
- Rugged, Plastic Mounting Base
- Cover Thermometer Indicates Room Temperature
- Well Suited for Upgrades and High-End New Construction
- Mounts Directly on Vertical 2 x 4 Inch Outlet Box or on 4 x 4 Inch Outlet Box
Specifications
- Type: Non-Programmable, High Performance, Line Voltage, 1-Heat
- Cover Type: Vertical
- Color: Premier White
- Voltage Rating: 120/208/240/277 Volt AC 60 Hertz
- Current Rating: 22 Amp at 120/208/240 Volt AC/19 Amp at 277 Volt AC (Non-Inductive Resistive)
- Switch Type: SPST
- Size: 2-7/8 Inch Width x 2-5/8 Inch Depth x 4-1/2 Inch Height
- Approval: UL, CSA
- Sensor Element Vapor Filled Dual Diaphragm
- Setting Temperature Range 50 to 80 Deg F
- Differential Temperature 2 Deg F
- Accuracy 1 Deg C
- Electrical Connection Type 6 Inch Copper Lead Wire
- Mounting Base Material Plastic
- Includes Thermometer, Range Stop and Locking Cover Screw, Long Lasting Micro Switch Mechanism
- Application Electric Baseboard, Convector, Fan Forced Heater
Documents
Specifications
- BrandHoneywell
- Built In Wi-FiFalse
- Digital ProgrammableNon-Programmable
- Line Voltage (60Hz)277V
- Power MethodHardwired
- Stages1 Heat
- Support Capacitive TouchFalse
- Amps22
- ApplicationElectric Baseboards, Convectors And Fan Forced Heaters
- BacklitFalse
- ColorWhite
- DisplayAnalog
- Height4.5 in
- LanguageEnlgish
- Length2.825 in
- Parts ApplicationStd heat/Cool
- Shipping Height2.9 in
- Shipping Length4.9 in
- Shipping Weight0.6 lb
- Shipping Width3.1 in
- Temperature Range50 To 80
- UL ListedFalse
- UL ListedTrue
- UL RecognizedFalse
- UL RecognizedFalse
- Voltage120/208/240/277
- Width2.625 in
