This product has been superseded by
EVAPORATOR MOTOR
This product has been superseded by
EVAPORATOR MOTOR
Description

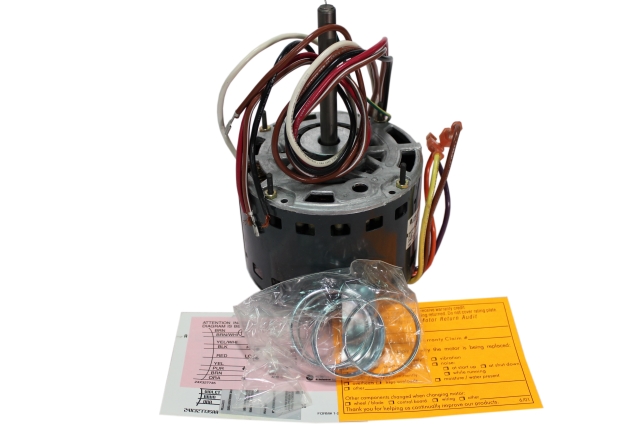

Totaline Direct Drive 2-Speed Blower Motor - PSC
- 48YZ Frame
- Air over applications continuous air over 40°C
- All angle sleeve bearings
- Electrically reversible
- Terminal connection for CW/CCW
- Auto reset overload protection
- 1/2" Extended thru bolts shaft end
- 1/2" Diameter shaft 4" long with full flat
- 2-1/4" Resilient rings with 2-1/2" snap rings
- Open construction, non-ventilated
Documents
There are no documents available.
Specifications
- BrandTotaline
- Bearing TypeSleeve
- Frame Size48
- HP1/4
- Number of Speeds2
- RotationClockwise, Counter Clockwise
- RPM1075
- RPM Range1001-1100
- Shaft Diameter1/2"
- Shaft PositionAll Angle
- TypeDirect Drive
- TypePSC Blower Motor
- Voltage115V
- Ambient40 °C
- CSA ListingTrue
- Frequency60Hz
- Full Load Amps4.2
- Height5.6 in
- Length9.1 in
- Motor Phase1
- Motor RPM1075
- Mounting MethodBand, Ring, Stud
- Run Capacitor15/370 µF/v
- Shaft Length4.9 in
- Shipping Height7 in
- Shipping Length6.7 in
- Shipping Point37406
- Shipping Weight11.2 lb
- Shipping Width14.6 in
- UL ListedTrue
- UL RecognizedTrue
- Voltage115
- Width4.9 in
