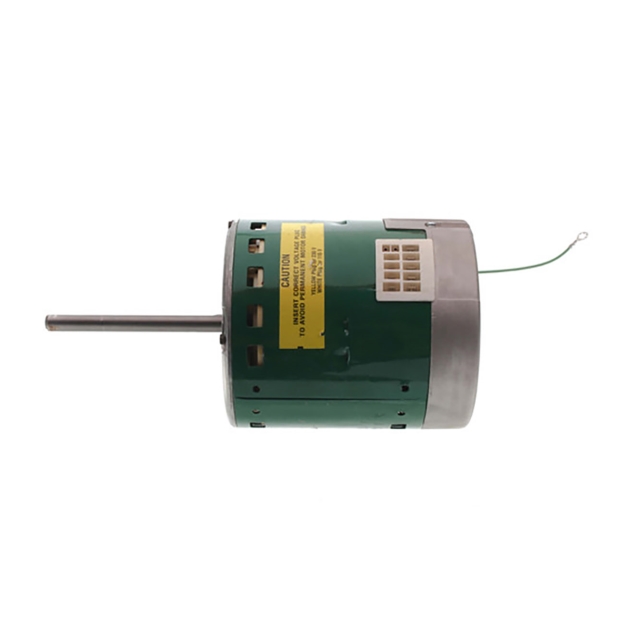

EVERGREEN PSC 1/2 - 1
EVERGREEN PSC 1/2 - 1
Description
- Replaces competitive OEM's Direct-Drive Blower motors designed with a 6-pole 1075rpm rated PSC motor
- 2 Multi-HP Models Available: 1/2HP (1/5-1/2) and 1HP rating (1/2-1)
- Dual voltage 115/230V single phase input, 50/60Hz
- 4 discrete speeds using 24VAC, plus automatic continuous fan speed
- Efficiency up to 80%
- NEMA 48 Frame
- UL and CSA recognized
- Automatic Dual Rotation
- Two Year Warranty
- DOES NOT REPLACE ANY EXISTING ECM
DOES NOT REPLACE ANY EXISTING ECM
Documents
There are no documents available.
Specifications
- BrandTotaline
- Bearing TypeBall
- Enclosure TypeOAO
- Frame Size48
- HP1
- Number of Speeds4
- RotationClockwise, Counter Clockwise
- RPM1075
- RPM Range1001-1100
- Shaft Diameter1/2
- TypeDirect Drive
- TypePSC Blower Motor
- VarietyPSC
- Voltage115/230V
- Ambient40 °C
- CSA ListingTrue
- Frequency50Hz, 60Hz
- Full Load Amps11.0/6.7
- Height5.6 in
- Length12.76 in
- Motor Phase1
- Motor RPM1075
- Mounting MethodBelly Band Mount
- Shaft Length4.5 in
- Shipping Height9 in
- Shipping Length17 in
- Shipping Point37406
- Shipping Weight19 lb
- Shipping Width9 in
- UL ListedTrue
- UL RecognizedTrue
- Voltage115/230
- Warranty2 Years
- Weight20 lb
- Width7.84 in
