3/4" Flare (SAE) Liquid Line Filter Drier ,30 CU IN
3/4" Flare (SAE) Liquid Line Filter Drier ,30 CU IN
Description

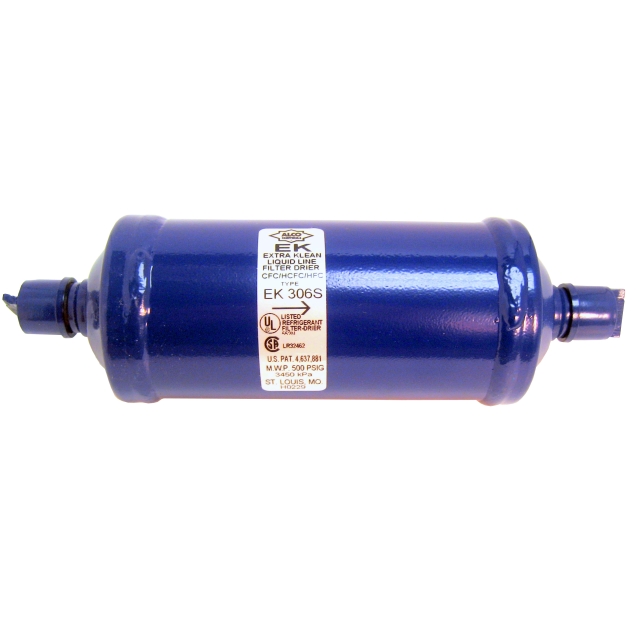

Emerson Electric Co. (White-Rodgers) 3/4" SAE Flare x 3/4" SAE Flare, 30 Cu Inch, 680 PSIG, Epoxy Powder Painted, Steel Shell, Solid Copper Connection, Hermetic, Liquid Line Filter Drier for CFC/HCFC/HFC R-12/R-134A Refrigerant System and Air Conditioner
The EK Liquid Line filter drier is a premium compacted bead filter drier with a 20 micron outlet pad for maximum filtration. The EK is a premium universal replacement liquid line filter drier for CFC, HCFC, and HFC refrigerants including R-12, R-134a, R-22, R-404A, R-407C, R-410A, R-500, R-502, and R-507.
Features & Benefits
- Filtration First for More Effective Use of Surface Area of Desiccant
- High Moisture and Acid Removal Capacity
- Approved for POE Oils with Copeland™ Compressors
- Desiccant Blend - Optimized for High Water Capacity and Acid Capacity
Specifications
- Item: Liquid Line Filter Drier, Hermetic
- Size: 3.64 Inch Diameter x 9.79 Inch Length
- Material: Steel (Shell), Solid Copper (Connection)
- Color/Finish: Epoxy Powder Painted
- Used On Item: R-12/R-134A/R-22/R-404A/R-407C/R-410A/R-500/R-502/R-507 Refrigerant System, Air Conditioner
- Used On Model/Brand: CFC/HCFC/HFC
- Applicable Standard: UL, CUL Desiccant Volume 41 Cubic Inch; Filtration 20 Micron; End Connection 3/8 Inch SAE Flare x 3/8 Inch SAE Flare; Pressure Rating 680 PSIG; Constructional Feature Corrosion/Shock Resistant
Specifications
- BrandEmerson
- BurnoutNo
- Connection TypeFlare (SAE)
- Effective Volume Desiccant30
- Line TypeLiquid
- Nominal Connection Size3/4" in
- Length9.73 in
- Maximum Working Pressure680 PSIG
- Shipping Point37406
- UL ListedFalse
- UL RecognizedFalse
- Weight3.01 lb
- Width3.14 in
