1-1/8" Sweat (ODF) Suction Line Filter Drier ,50 CU IN
1-1/8" Sweat (ODF) Suction Line Filter Drier ,50 CU IN
Description

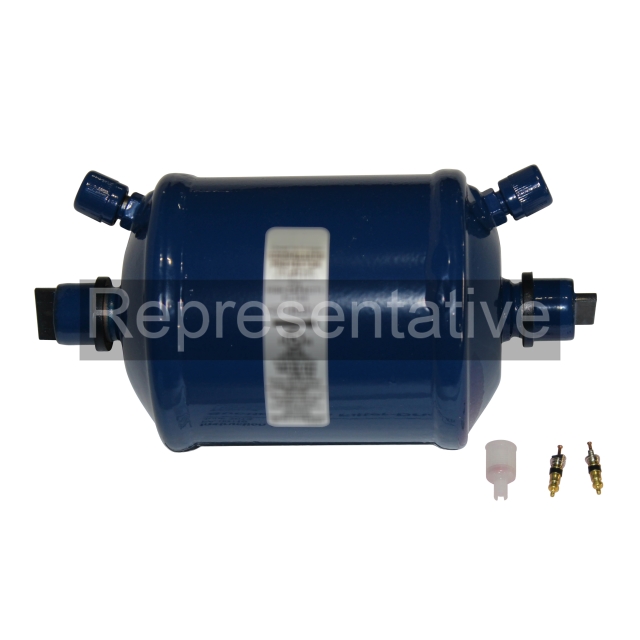

Emerson Electric Co. (White-Rodgers) 5" x 8.84", 1-1/8" ODF Soldered x 1-1/8" ODF Soldered, 50 Cu Inch, 500 PSIG, Epoxy Powder Painted, Solid Copper Connection, Dual Access Valve, Hermetic, Suction Line Filter Drier for R-12/R-134A Refrigerant System
The ASF is a specifically designed filter to protect the compressor from dirt and all solid contaminants.
Features & Benefits
- Dual Access Valves for Easy Pressure Readings
Specifications
- Item: Suction Line Filter Drier, Hermetic
- Size: 5 Inch Diameter x 12.16 Inch Length
- Material: Solid Copper (Connection)
- Color/Finish: Epoxy Powder Painted
- Used On Item: R-12/R-134A/R-450A/R-513A/R-744 Refrigerant System
- Applicable Standard: UL, CUL Desiccant Volume 75 Cubic Inch; Filtration 40 Micron; Access Type Dual Access Valve; End Connection 1-5/8 Inch ODF Soldered x 1-5/8 Inch ODF Soldered; Pressure Rating 500 PSIG; Constructional Feature Corrosion Resistant
Specifications
- BrandEmerson
- BurnoutNo
- Connection Material FinishCopper
- Connection TypeSweat (ODF)
- Effective Volume Desiccant50
- Line TypeSuction
- Nominal Connection Size1-1/8" in
- ApplicationThe ASF Is A Specifically Designed Filter To Protect The Compressor From Dirt And All Solidcontaminants.
- Height3.69 in
- Length8.84 in
- Maximum Working Pressure500 PSIG
- Shell Material & FinishPainted
- Shipping Height4 in
- Shipping Length11 in
- Shipping Weight3 lb
- Shipping Width4 in
- TypeSuction Line
- UL ListedFalse
- UL ListedTrue
- UL RecognizedFalse
- UL RecognizedTrue
- Weight3.5 lb
- Width3.69 in
