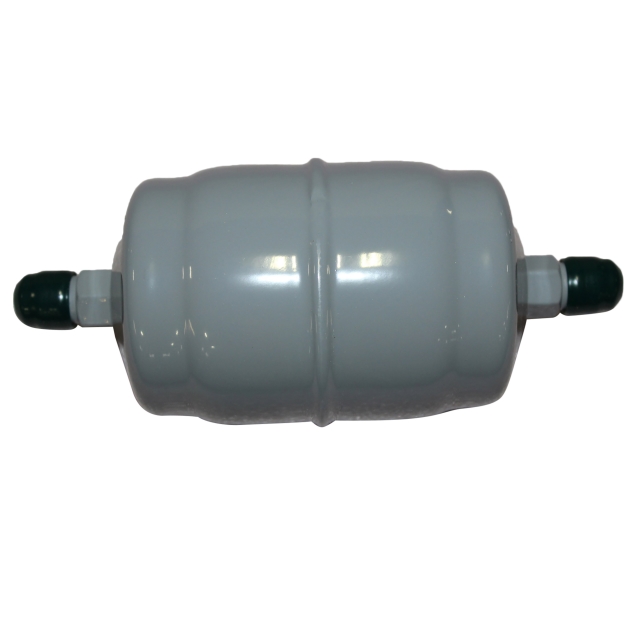

3/8" Flare (SAE) Refrigerant Filter Drier ,10 CU IN
3/8" Flare (SAE) Refrigerant Filter Drier ,10 CU IN
Description
- A short overall length for easy installation.
- Drier operates in either flow direction with low pressure drop.
- Proven metal check valves used in construction.
- No synthetic materials.
- The Sporlan dependable molded core used for maximum filtration ability.
- When the flow direction reverses, dirt already collected remains in the filter-drier.
- A carefully engineered blend of desiccants for maximum water capacity and acid removal ability.
- The HPC-160-HH Series also has the HH style core with activated charcoal which offers maximum ability to remove oleoresin and other reactivechemical constituents in the oil.
- Same rugged construction as used in the Catch-All.
Liquid line drying and filtering for solid contaminant removal
Specifications
- BrandSporlan
- BurnoutNo
- Connection Material FinishCopper
- Connection TypeFlare (SAE)
- Core Material & FinishMolded Porous Core
- Effective Volume Desiccant10
- Nominal Connection Size3/8" in
- RefrigerantHC, HCFC, HFC, HFO
- ApplicationLiquid Line
- Diameter3 in
- Height29.9375 in
- Length6.75 in
- Maximum Working Pressure650 PSIG
- Shell Material & FinishPainted
- Shipping Height3.2 in
- Shipping Length7.9 in
- Shipping Point37406
- Shipping Weight1.6 lb
- Shipping Width3.2 in
- TypeBi-Directional
- UL ListedFalse
- UL ListedTrue
- UL RecognizedFalse
- UL RecognizedTrue
- Width29.9375 in
