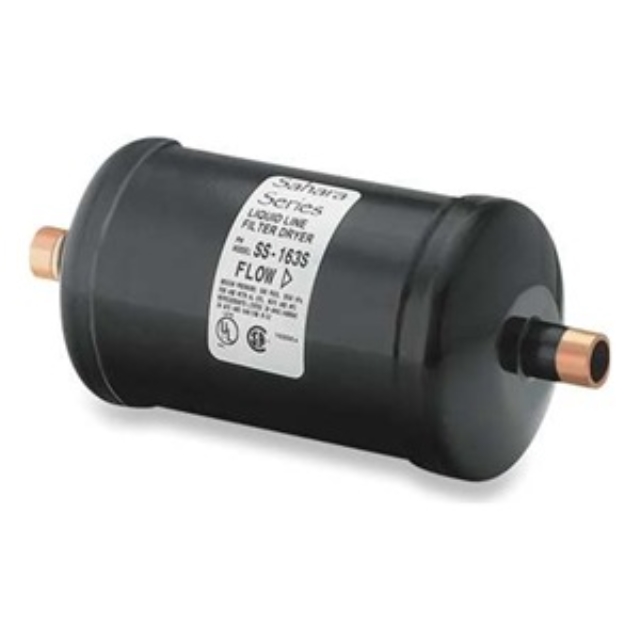

3/8" Sweat (ODF) Liquid Line Filter Drier ,3 CU IN
3/8" Sweat (ODF) Liquid Line Filter Drier ,3 CU IN
Description
- Compacted bead filter drier, with a fine 20 Micron outlet pad for maximum filtration.
- Universal Replacement for CFC, HCFC, and HFC Refrigerants.
- Filtration first for more effective use of surface area of desiccant.
- Solid copper connection for easy installation.
Liquid Line type
Documents
There are no documents available.
Specifications
- BrandTotaline
- BurnoutNo
- Connection Material FinishCopper
- Connection TypeSweat (ODF)
- Core Material & FinishCompacted Bead
- Effective Volume Desiccant3
- Line TypeLiquid
- Nominal Connection Size3/8" in
- RefrigerantCFC, HCFC, HFC
- ApplicationLiquid Line
- Cutout Length2.79 in
- Filter Drier Overall Length4.03 in
- Height1.75" in
- Lay In Length2.57 in
- Length4.03 in
- Maximum Working Pressure680 PSIG
- Shell Material & FinishPainted Steel
- Shipping Height2 in
- Shipping Length5 in
- Shipping Point37406
- Shipping Weight1 lb
- Shipping Width2 in
- Solder Sprocket Depth0.62 in
- TypeCOMPACTED BEAD
- UL ListedTrue
- UL RecognizedTrue
- Weight0.48 lb
- Width1.75 in
