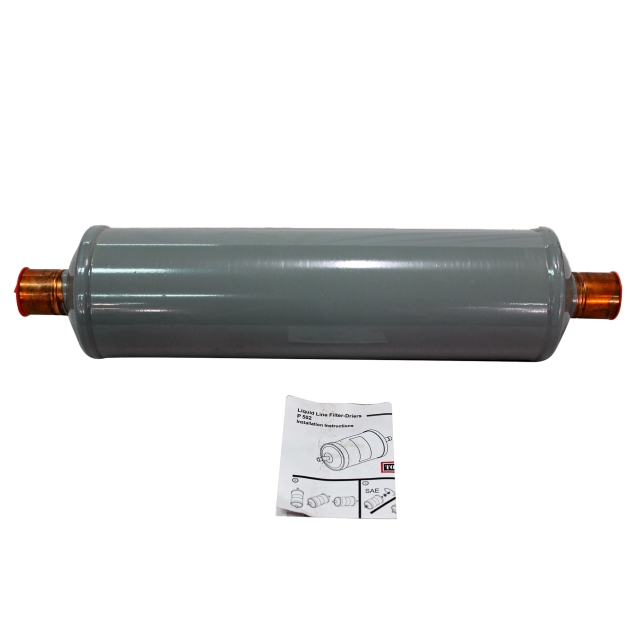

1-1/8" Sweat (ODF) Liquid Line Filter Drier ,75 CU IN
1-1/8" Sweat (ODF) Liquid Line Filter Drier ,75 CU IN
Description
Compacted bead filter drier, with a fine 20 Micron outlet pad for maximum filtration. Universal Replacement for CFC, HCFC, and HFC Refrigerants. Filtration first for more effective use of surface area of desiccant. Solid copper connection for easy installation.
Documents
There are no documents available.
Specifications
- BrandTotaline
- BurnoutNo
- Connection Material FinishCopper
- Connection TypeSweat (ODF)
- Core Material & FinishCompacted Bead
- Effective Volume Desiccant75
- Line TypeLiquid
- Nominal Connection Size1-1/8" in
- RefrigerantCFC, HCFC, HFC
- Cutout Length14.07 in
- Filter Drier Overall Length15.88 in
- Height3.64" in
- Lay In Length13.16 in
- Length15.88 in
- Maximum Working Pressure680 PSIG
- Shipping Height3.937 in
- Shipping Length17.9528 in
- Shipping Point37406
- Shipping Weight5.5 lb
- Shipping Width4.0157 in
- Solder Sprocket Depth0.91 in
- TypeCOMPACTED BEAD
- UL ListedTrue
- UL RecognizedTrue
- Weight6.14 lb
- Width3.64 in
