Totaline

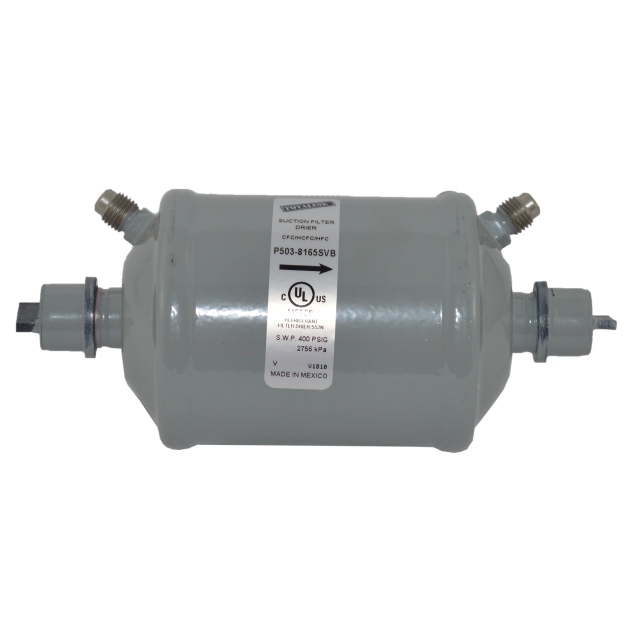

5/8" Sweat (ODF) Suction Line Filter Drier ,16 CU IN

SKU:P503-8165SVB
Totaline

5/8" Sweat (ODF) Suction Line Filter Drier ,16 CU IN

SKU:P503-8165SVB

    Description

    • Charcoal blend for soluble contaminant and wax removal.
    • Dual access valves.
    • Solid copper fittings.
    • Corrosion resistant epoxy powder paint finish.

    Solid core with special blend to maximize acid, moisture, and wax removal. For use with CFC, HCFC and HFC refrigerants.

    Documents

    There are no documents available.

    Specifications

    • BrandTotaline
    • BurnoutNo
    • Connection Material FinishCopper
    • Connection TypeSweat (ODF)
    • Core Material & FinishSolid Core
    • Effective Volume Desiccant16
    • Line TypeSuction
    • Nominal Connection Size5/8" in
    • RefrigerantCFC, HCFC, HFC
    • Application� Solid Core With Special Blend To Maximize Acid,Moisture, And Wax Removal.� For Use With CFC, HCFC And HFC Refrigerants.
    • Cutout Length5.12 in
    • Diameter3.140625 in
    • Filter Drier Overall Length6.37 in
    • Height3-9/64" in
    • Lay In Length4.62 in
    • Length6.375 in
    • Maximum Working Pressure500 PSIG
    • Shell Material & FinishPainted
    • Shipping Height5 in
    • Shipping Length12 in
    • Shipping Point37406
    • Shipping Weight5 lb
    • Shipping Width4 in
    • Solder Sprocket Depth5.62 in
    • TypeSOLID CORE
    • UL ListedTrue
    • UL RecognizedTrue
    • Weight2 lb
    • Width3.140625 in
