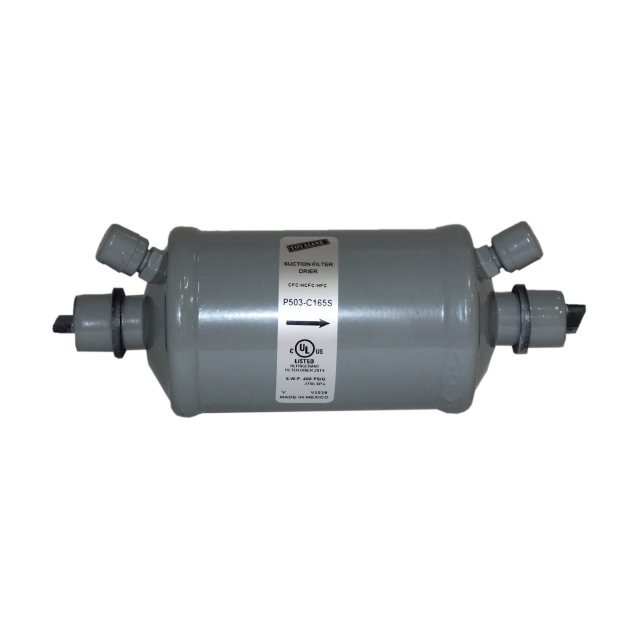

5/8" Sweat (ODF) Suction Line Filter Drier ,16 CU IN
5/8" Sweat (ODF) Suction Line Filter Drier ,16 CU IN
Description
- Dual Access Valve on each end for accurate pressure drop reading
- For Use with HCFCs, & CFCs
- High Organic and Inorganic Acid Removal
- Corrosion Resistant Paint
- Unique Molded Desiccant Block
Removes solid contaminants and harmful acids that are created during motor burnout. The suction line filter drier should be installed in Remote systems with long refrigerant lines to remove contaminants.
Documents
There are no documents available.
Specifications
- BrandTotaline
- BurnoutNo
- Connection TypeSweat (ODF)
- Core Material & FinishSolid Core
- Effective Volume Desiccant16
- Line TypeSuction
- Nominal Connection Size5/8" in
- RefrigerantCFC, HCFC
- ApplicationRemoves Solid Contaminants And Harmful Acids That Arecreated During Motor Burnout. The Suction Line Filter Driershould Be Installed In Remote Systems With Long Refrigerantlines To Remove Contaminants.
- Diameter2.5 in
- Filter Drier Overall Length6.54 in
- Height2.5" in
- Length6.54 in
- Maximum Working Pressure500 PSIG
- Shipping Height2.9 in
- Shipping Length2.8 in
- Shipping Point37406
- Shipping Weight1 lb
- Shipping Width8.5 in
- TypeSOLID CORE
- UL ListedTrue
- UL RecognizedTrue
- Weight1.26 lb
- Width2.5 in
