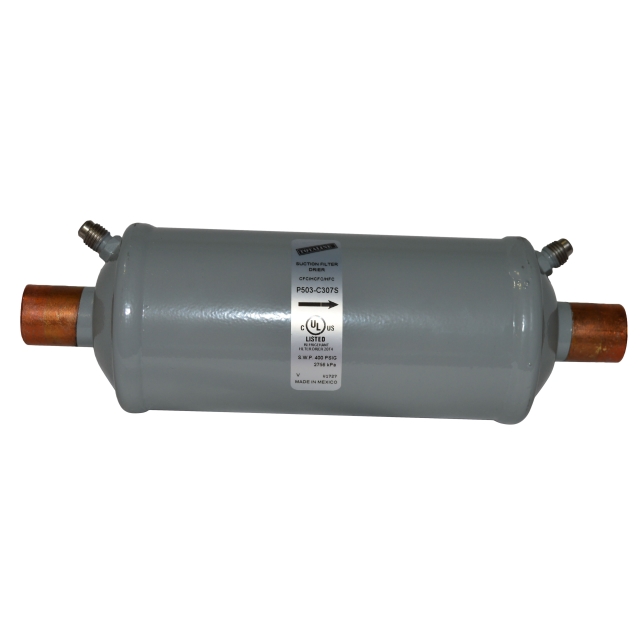

7/8" Sweat (ODF) Suction Line Filter Drier ,30 CU IN
7/8" Sweat (ODF) Suction Line Filter Drier ,30 CU IN
Description
- Dual Access Valve on each end for accurate pressure drop reading
- For Use with HCFCs, & CFCs
- High Organic and Inorganic Acid Removal
- Corrosion Resistant Paint
- Unique Molded Desiccant Block
Removes solid contaminants and harmful acids that are created during motor burnout. The suction line filter drier should be installed in Remote systems with long refrigerant lines to remove contaminants.
Documents
There are no documents available.
Specifications
- BrandTotaline
- BurnoutNo
- Connection TypeSweat (ODF)
- Core Material & FinishSolid Core
- Effective Volume Desiccant30
- Line TypeSuction
- Nominal Connection Size7/8" in
- RefrigerantCFC, HCFC
- ApplicationRemoves Solid Contaminants And Harmful Acids That Arecreated During Motor Burnout. The Suction Line Filter Driershould Be Installed In Remote Systems With Long Refrigerantlines To Remove Contaminants.
- Diameter3 in
- Filter Drier Overall Length9.8 in
- Height3.0" in
- Length9.8 in
- Maximum Working Pressure500 PSIG
- Shipping Height3.1 in
- Shipping Length11.4 in
- Shipping Point37406
- Shipping Weight2 lb
- Shipping Width3.4 in
- TypeSOLID CORE
- UL ListedTrue
- UL RecognizedTrue
- Width29.9375 in
