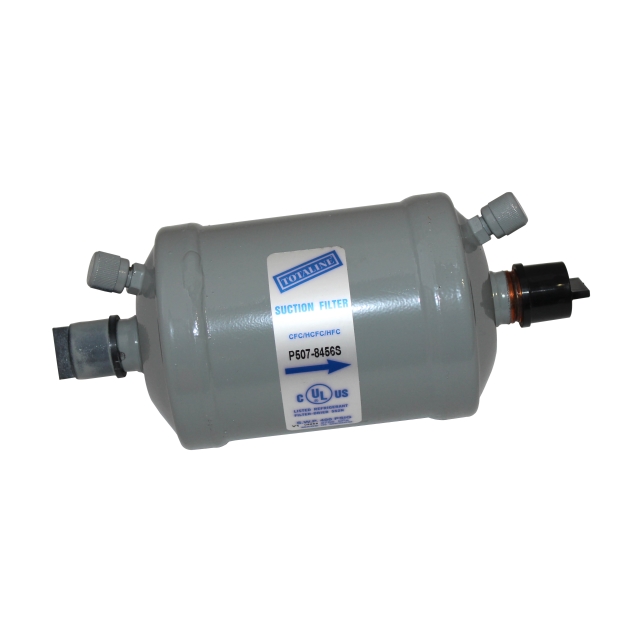

3/4" Sweat (ODF) Suction Line Filter Drier ,45 CU IN
3/4" Sweat (ODF) Suction Line Filter Drier ,45 CU IN
Description
- Solid copper fittings
- Dual Access Valves
- Corrosion Resistant Epoxy Paint Finish
Totaline Suction Line Filters protect the compressor from harmful solid contaminants.
Documents
There are no documents available.
Specifications
- BrandTotaline
- BurnoutNo
- Connection Material FinishCopper
- Connection TypeSweat (ODF)
- Effective Volume Desiccant45
- Line TypeSuction
- Nominal Connection Size3/4" in
- RefrigerantCFC, HCFC, HFC
- ApplicationTotaline Suction Line Filters Protect The Compressorfrom Harmful Solid Contaminants.
- Cutout Length6.5 in
- Diameter3.6875 in
- Filter Drier Overall Length7.75 in
- Height3-11/16" in
- Lay In Length5.56 in
- Length7.75 in
- Maximum Working Pressure400 PSIG
- Shell Material & FinishPainted
- Shipping Height4 in
- Shipping Length10 in
- Shipping Point37406
- Shipping Weight3 lb
- Shipping Width4 in
- Solder Sprocket Depth5.62 in
- TypeSuction Line
- UL ListedTrue
- UL RecognizedTrue
- Weight3 lb
- Width3.6875 in
