1/4" Sweat (ODF) Liquid Line Filter Drier ,3 CU IN
1/4" Sweat (ODF) Liquid Line Filter Drier ,3 CU IN
Description

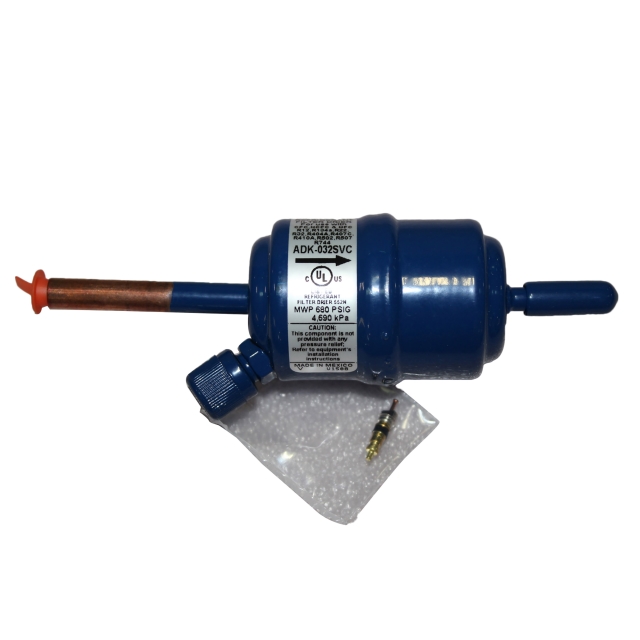

Emerson Electric Co. (White-Rodgers) 1/4" ODF Soldered x 1/4" Cap Tube, 3 Cu Inch, 680 PSIG, Epoxy Powder Painted, Solid Copper Connection, Core Style, Single Access Valve, Hermetic, Liquid Line Filter Drier for CFC/HCFC/HFC R-12/R-134A Refrigerant System and Residential Air Conditioner
The ADK is a solid core liquid line filter drier good for use with CFC, HCFC, and HFC refrigerants.
Features & Benefits
- High Moisture and Acid Removal Capacity
- Copeland™ Products Approved for POE Oils
- Desiccant Blend - Optimized for High Water Capacity and Acid Capacity
Specifications
- Item: Liquid Line Filter Drier, Hermetic
- Size: 2.64 Inch Diameter x 4.84 Inch Length
- Material: Solid Copper (Connection)
- Color/Finish: Corrosion Resistant Epoxy Powder Painted
- Used On Item: R-12/R-134A/R-22/R-407C Refrigerant System, Residential Air Conditioner
- Used On Model/Brand: CFC/HCFC/HFC
- Applicable Standard: UL, CUL Desiccant Volume 5 Cubic Inch; Filtration 40 Micron; Style Core; End Connection 1/4 Inch SAE Flare x 1/4 Inch SAE Flare; Pressure Rating 680 PSIG; Constructional Feature Corrosion Resistant
Specifications
- BrandEmerson
- BurnoutNo
- Connection TypeSweat (ODF)
- Core Material & FinishSolid Core
- Effective Volume Desiccant3
- Line TypeLiquid
- Nominal Connection Size1/4" in
- RefrigerantR12, R134A
- Length5.8 in
- Maximum Working Pressure680 PSIG
- Refrigerant Charge Amount (Lbs)0.5
- Shipping Height1.811 in
- Shipping Length6.221 in
- Shipping Point37406
- Shipping Weight0.6 lb
- Shipping Width1.968 in
- UL ListedFalse
- UL RecognizedFalse
- Weight0.35 lb
