This product is obsolete
FIRST CO 1-2T 4-PIPE CW/HW AHU
This product is obsolete
FIRST CO 1-2T 4-PIPE CW/HW AHU
Description

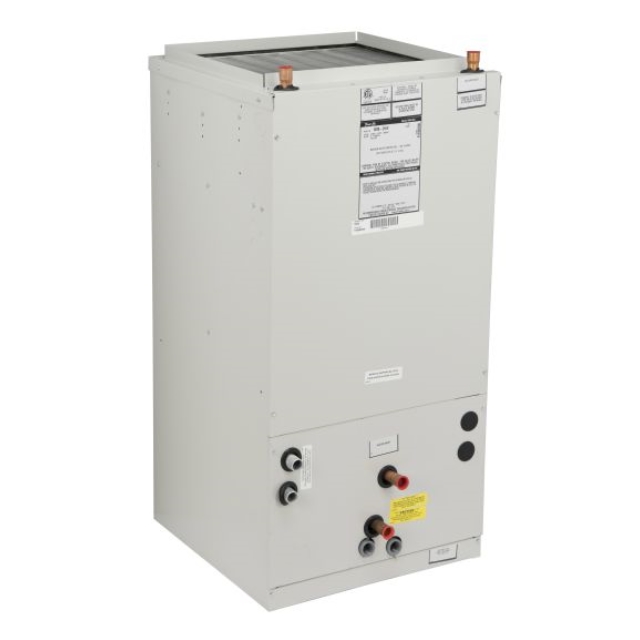

First Company Products 1 to 2 Ton, 41700 BTU/Hr Heating, 120 V Motor, 24 V Control, 4.5 A, 1/5 HP, 800 CFM, 3-Speed, 4-Pipe, 2-Row Hot Water Coil, Upflow, Vertical/Horizontal, Chilled Water/Hot Water, Air Handler
Features & Benefits
- High Efficiency Variable Speed Motor
- Copper Tube Coils or Aluminum Fin
- Factory Installed Filter
- Convertible Vertical/Horizontal Drain Pan Right to Left Hand
- High Efficiency Pleated Filter(S)
- Attractive Baked-on Powder Coated Finish
- Fully Insulated Cabinet
- Primary and Secondary Drain Connections on Cooling Coil
Specifications
- Type: 2-Pipe, Variable Speed, Vertical/Horizontal, Chilled Water/Hot Water
- Voltage Rating: 120/208/230 Volt (Motor), 24 Volt (Control)
- Current Rating: 4.8 Amp (Motor), 6 Amp (MCA), 15 Maximum HACR Breaker
- Number of Phases: 1
- Power Rating: 1/3 HP (Motor)
- Cooling Capacity: 18000/24000 BTU/Hour at 180 Deg F
- Temperature Control Type: Thermostat
- Connection Type: Terminal Block
- Installation: Horizontal Drain Pan Right to Left Hand
- Size: 20 Inch Width x 20 Inch Depth x 40 Inch Height
- Approval: ETL (Canada and US) Nominal Capacity 1 to 2 Ton; Air Flow Rating 800 CFM (High), 600 CFM (Medium), 500 CFM (Low); Filter Size 18 Inch x 20 Inch x 1 Inch
Specifications
- BrandFirst Company
- Shipping Weight105 lb
