Features & Benefits

• Provides Motor Overload, Ground Fault and Short-Circuit Protection
• Helps Protect Motors Against Burnout from Overloads
• Helps Protect Motors Against Burnout from Single-Phasing on Three-Phase Systems
• Simplifies and Improves Blackout Prevention
• Dual-Element Fuses can be Applied in Circuits Subject to Temporary Motor Overloads and Surge Currents to Provide both High-Performance Short-Circuit and Overload Protection
• The Overload Element Provides Protection Against Low Level Over Current of Overloads and will Hold an Overload which is Five Times Greater than the Ampere Rating of the Fuse for a Minimum of Ten Seconds

Specifications

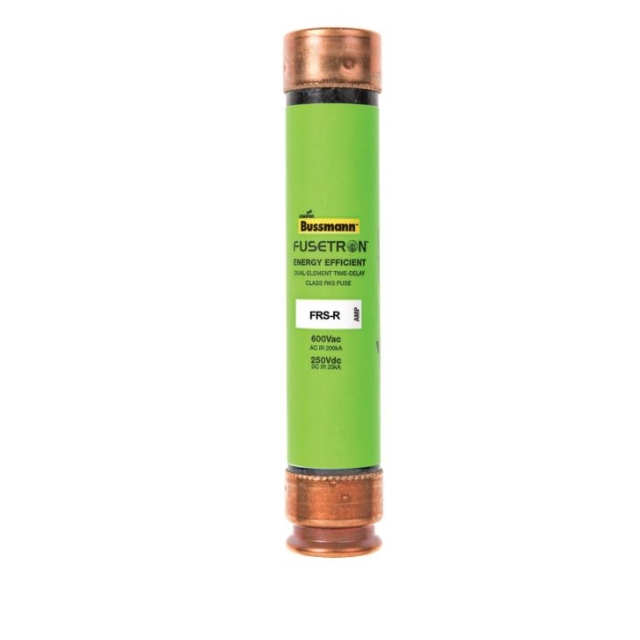

• Type: Class RK5
• Characteristics: 10 Second Time Delay (500 Percent Rated Load), Dual Element
• Voltage Rating: 600 Volt AC, 300 Volt DC
• Current Rating: 15 Amp
• Interrupting Rating: 200 Kiloamp (Symmetrical AC), 20 Kiloamp (DC)
• Diameter: 0.81 Inch
• Length: 5 Inch
• Approval: UL 248-12, CSA C22.2, CE
• Application Power Panelboard, Motor Control Center, Combination Starter, Machinery Disconnect
