Description

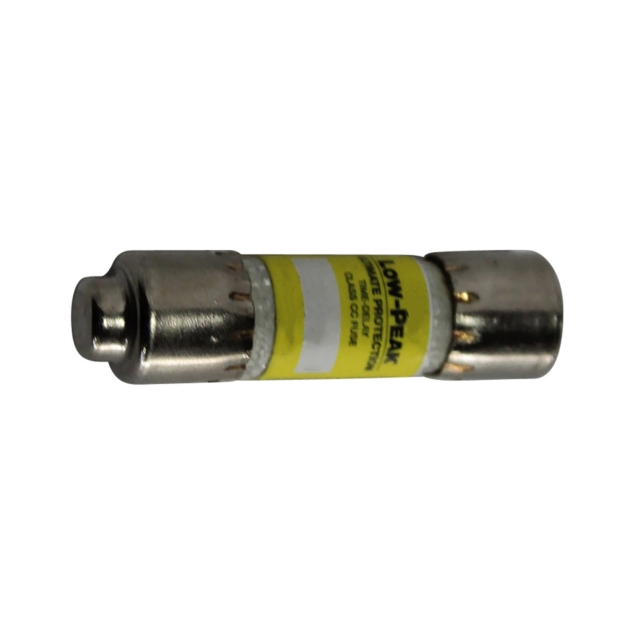

Eaton (Bussmann) Low-Peak⢠13/32" x 1-1/2", 600 VAC, 300 VDC, 20 A, 200 kA Symmetrical Interrupt, Ferrule Terminal, Time Delay, Current Limiting, Dual Element, Class CC Rejection, Midget Fuse
Features & Benefits
- Class CC rejection feature, with appropriate fuse block, prevents inserting lesser-rated supplementary fuses
- Time-delay coupled with Class CC current-limiting response provides close sizing on small motor and relay circuits and maximum component short-circuit current rating protection
- 200 Kilo Amp interrupting rating provides high ratings for control circuit locations
- Selective coordination ratio of 2:1 (within Low-Peak fuse family) prevents electrical shutdowns from extending beyond the failed circuit
- RoHS Compliant
Specifications
- Type: Class CC Rejection
- Characteristics: Time Delay, Current Limiting, Dual Element
- Voltage Rating: 600 Volt AC, 300 Volt DC
- Current Rating: 20 Amp
- Interrupting Rating: 200 Kiloamp (Symmetrical), 20 Kiloamp (DC)
- Terminal Type: Ferrule
- Diameter: 13/32 Inch
- Length: 1-1/2 Inch
- Approval: UL 248-4, CSA, CE
- RoHS Compliant
- Overall Dimension 1.5 Inch Length x 0.41 Inch Width x 0.41 Inch Height
- Material Melamine Tube
- Application Branch Circuit Protection, Specialized Circuit, Industrial Control and Panel, Isolated In-Line Fuse Holder
Documents
There are no documents available.
Specifications
- BrandBussmann
- BrandBussmann
- Voltage600V
- Shipping Height0.25 in
- Shipping Length9 in
- Shipping Weight0.1 lb
- Shipping Width4 in
- UL ListedFalse
- UL RecognizedFalse
