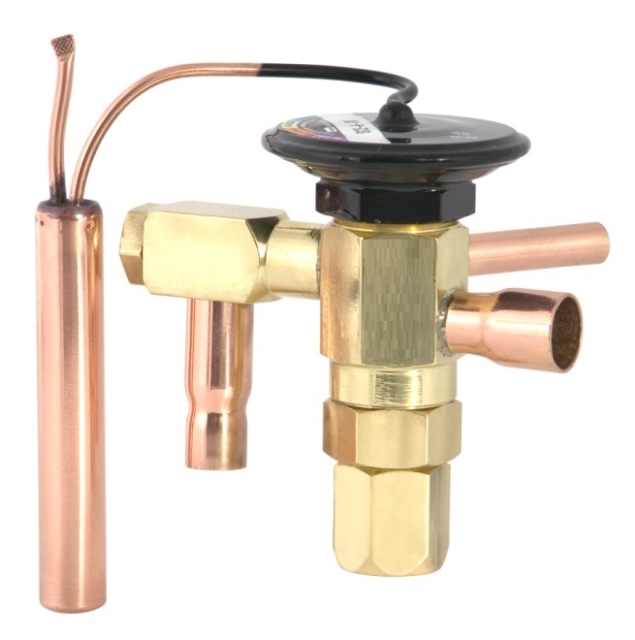

The Parker H series balanced port valve is designed specifically for air conditioning and heat pumps used in both air and water source systems. It offers features such as bleed ports and a variety of connection styles for the inlet, outlet and external equalizer. The Parker HC series adds a built in 5 ton check valve for R-22, R-407C and R410 heat pump applications with either factory set or field adjustable superheat.

Features & Benefits

• Stainless Steel Replaceable Power Assembly Eliminate Corrosion and Prevent Valve Failure
• Two Body Size Provide Capacity from 1/4 to 20 Ton
• Bodies, Cages and Power Assemblies can be Ordered Separately or in Pre-Packaged Service Kits
• Bi-Directional Capability up to 3-1/2 Tons for R-22 on One Valve Superheat Control in Cooling and Heating

Specifications

• Type: Balanced Port Design, Bi-Directional, Adjustable Superheat, Standard Body, 90 Degree
• Nominal Size: 1/4 Inch x 1/2 Inch
• End Connection: SAE Flare x SAE Flare
• Pressure Rating: 450 PSIG
• Inclusions/Features: External Equalizer, Stainless Steel Power Assembly
• Exclusions: Bleed Hole
• Application: Refrigerant, Air Conditioner and Heat Pump
• Applicable Standard: UR/CUR, CRN
Capillary Tube Length 5 Foot; Refrigerant Type R-12; Capacity 1/2 Ton; Charge Code Medium Temperature
