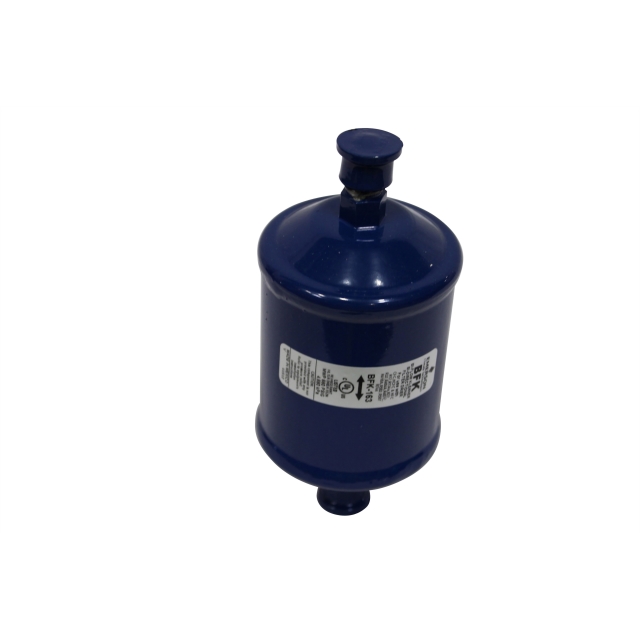

3/8" Flare (SAE) Liquid Line Filter Drier ,16 CU IN
3/8" Flare (SAE) Liquid Line Filter Drier ,16 CU IN
Description
- Available 5 to 30 cu. in. size.
- Internal check valves allow flow and filtration in either direction, eliminates need for external check valves.
- High moisture and acid removal capacity.
- Corrosion resistant epoxy powder paint finish.
- Copeland brand products approved for POE oils
The BFK is a solid core, bi-directional, liquid line filter drier for heat pump applications
Documents
There are no documents available.
Specifications
- BrandEmerson
- BurnoutNo
- Connection TypeFlare (SAE)
- Core Material & FinishSolid Core
- Effective Volume Desiccant16
- Line TypeLiquid
- Nominal Connection Size3/8" in
- RefrigerantCFC, HCFC, HFC
- ApplicationThe BFK Is A Solid Core, Bi-Directional, Liquid Line Filter Drier For Heat Pumpapplications
- Diameter3.14 in
- Height3.14 in
- Length6.824 in
- Maximum Working Pressure680 PSIG
- Shell Material & FinishPainted
- Shipping Height8.4 in
- Shipping Length3.4 in
- Shipping Point37406
- Shipping Weight1.78 lb
- Shipping Width3.4 in
- TypeBi-Directional
- UL ListedFalse
- UL ListedTrue
- UL RecognizedFalse
- UL RecognizedTrue
- Weight2.08 lb
- Width3.14 in
