HFES 1/2RZ ODFANG EE 5'3/8X1/2
HFES 1/2RZ ODFANG EE 5'3/8X1/2
Description

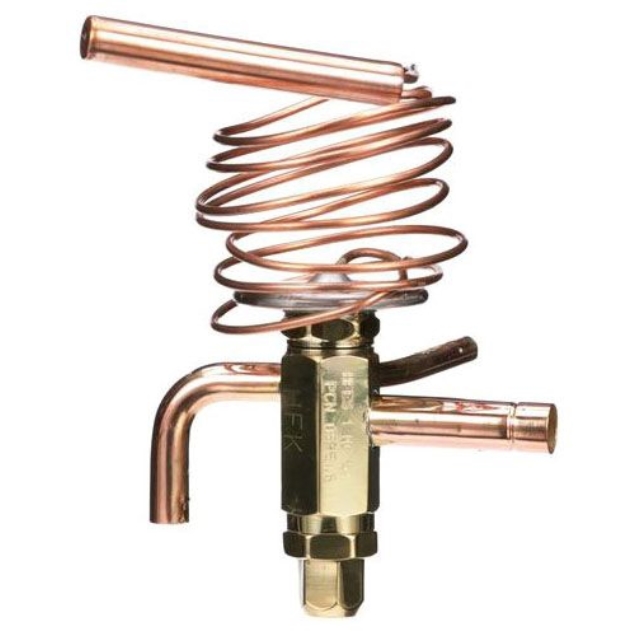

Emerson Electric Co. (White-Rodgers) 3/8" x 1/2", ODF Soldered x ODF Soldered, 1/2 Ton Capacity, 450 PSIG, R-502, Low Temperature, Balanced Port Design, Bi-Directional, Adjustable Superheat, Standard Body, 90D, Refrigerant Thermostatic Expansion Valve with External Equalizer and 5 ' Capillary Tube
The HF Series is a balanced ported valve designed for refrigeration, air conditioning and heat pump applications.
Specifications
- Item: Power Assembly
- Used On Item: Thermostatic Expansion Valve
- Used On Model/Brand: TCL/TCLE/TJLE/TJR Cap Length 20 Foot; Refrigerant Type R-22; Charge Code C (Medium Temperature); Equalizer Type External; Application Air Conditioning, Heat Pump
Specifications
- BrandFactory Authorized Part
- Configuration90° Angle
- Equalizer LocationInternal
- RefrigerantR502
- TXV Charge CodeRZ
- TXV Connection TypeSweat (ODF)
- TXV Inlet Size3/8"
- TXV Outlet Size1/2"
- TXV SeriesHFE HFES
- Capillary Length60 in
- Maximum Working Pressure450 PSIG
- Rated Capacity Primary Refrigerant0.5
- Shipping Height4.5 in
- Shipping Length7 in
- Shipping Weight1.4 lb
- Shipping Width4.5 in
