HFES3-1/2RC 5' 1/2X5/8ODFS/T
HFES3-1/2RC 5' 1/2X5/8ODFS/T
Description

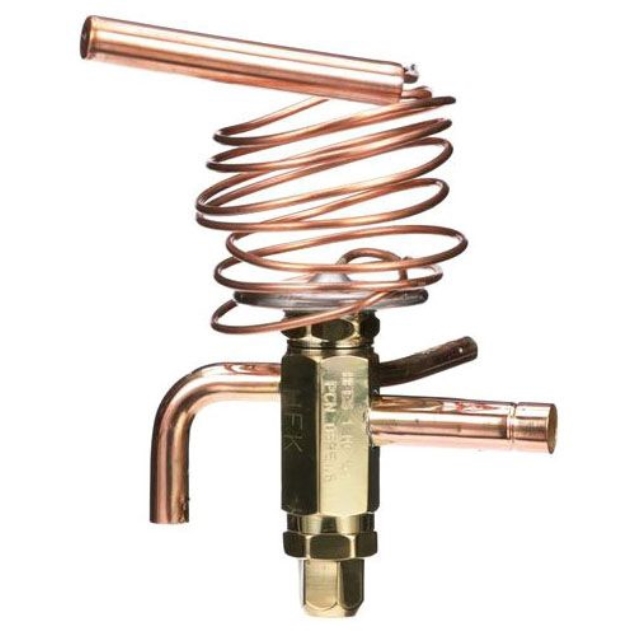

Emerson Electric Co. (White-Rodgers) 1/2" x 5/8", ODF Soldered x ODF Soldered, 3-1/2 Ton Capacity, 450 PSIG, R-502, Medium Temperature, Balanced Port Design, Bi-Directional, Adjustable Superheat, Standard Body, Straight Through, Refrigerant Thermostatic Expansion Valve with External Equalizer and 5 ' Capillary Tube
The HF Series is a balanced ported valve designed for refrigeration, air conditioning and heat pump applications.
Features & Benefits
- Stainless steel replaceable power assembly eliminates corrosion and prevents valve failure
Specifications
- Item: Thermostatic Expansion Valve
- Size: 3/8 Inch SAE Flare x 1/2 Inch SAE Flare
- Used On Item: Refrigeration, Air Conditioner and Heat Pump
- Applicable Standard: UL, CUL Body Design Angle; Equalizer Type Internal; Refrigerant Type R-12/134A; Capacity 1/2 Ton; Capillary Length 5 Foot; Pressure Rating 450 PSIG
Specifications
- BrandFactory Authorized Part
- Configuration90° Angle
- Equalizer LocationInternal
- RefrigerantR502
- TXV Charge CodeRC
- TXV Connection TypeSweat (ODF)
- TXV Inlet Size3/8"
- TXV Outlet Size1/2"
- TXV SeriesHFE HFES
- Capillary Length60 in
- Maximum Working Pressure450 PSIG
- Rated Capacity Primary Refrigerant3.5
- Shipping Height7 in
- Shipping Length5 in
- Shipping Weight3 lb
- Shipping Width5 in
