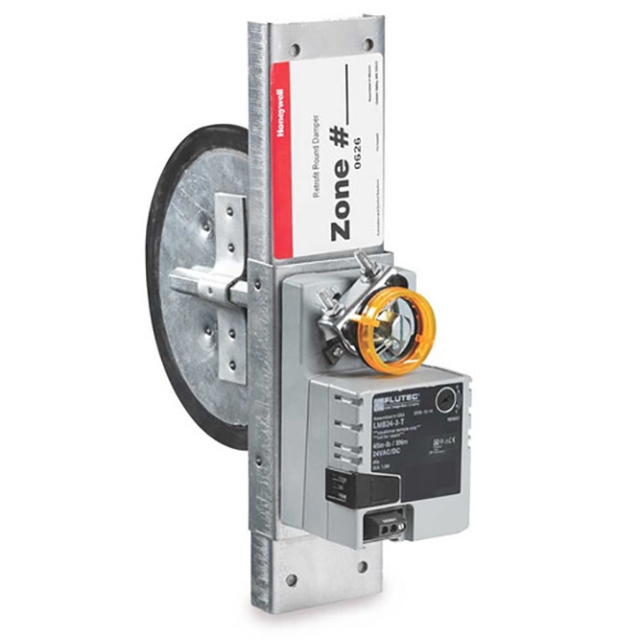

Experience the power and performance of Honeywell’s zone dampers. Adjustable minimum and maximum range stops allow you to adjust damper to meet your customers' individual needs.

Features & Benefits

• Easy Slide-In Installation
• 2.5 Volt Amp Allows for Many Dampers on One Zone
• Quiet, Long Life Motor Automatically Shuts Itself Off in Full Open and Closed Positions
• Gaskets Around Blade and Under Motor Housing for Low Internal Leakage and Very Low External Leakage
• Range Stops with Easy Adjustment from Top of Motor
• Easy to See and Reliable Mechanical Blade Position Indicator
• Easy to Hook up with Conventional Thermostat Wire
• Simple Manual Blade Positioning with Pushbutton Gear Release

Specifications

• Type: Round, Retrofit, Power Open/Power Close
• Duct Size: 6 Inch Diameter
• Material Thickness: 18 Gauge (Frame), 20 Gauge (Blade)
• Blade Material: G60/G90 Galvanized Steel
• Inclusions/Features: Black EPDM Rubber Gasket
• Applicable Standard: UL, NEMA 1
• Motor Mounting Type Direct Connection to Damper Shaft
• Voltage Rating 24 Volt AC 50/60 Hertz
• Motor Torque Rating 35 Inch-Pound
• Ambient Temperature Rating -40 to 122 Deg F
• Pressure Drop Less Than 0.05 Inch WC (Open)
• Motor Angular Rotation 90 Degree
• Leakage 3.4 Percent at 0.5 Inch WC (Closed)
• Motor Timing 90 Second
• Wires to Motor Terminal 3
• Application Heating and Cooling System
