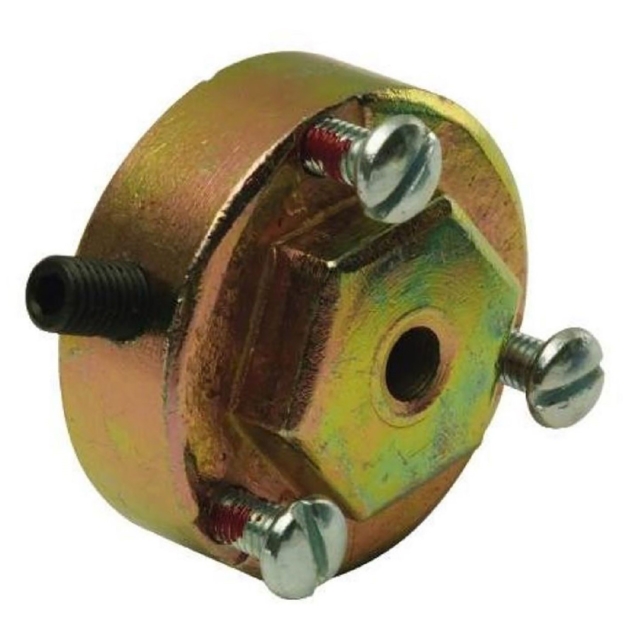

HUB ASSEMBLY
HUB ASSEMBLY
Description
- For use on all 3-Blade, 4-Blade and 5-Blade propellers
- Includes set and mounting screws
- All steel with extra metal in the two mounting surfaces (hex and round) for moresecure fit in multiple applications
- Hex on one side, round on the other (may use either side) one inventory for allp ropellers
- Zinc-plated, coated with gold chromate for double protection
- Set screws are heat-treated, black oxide
- Mounting screws: zinc-plated, heat-treated, pan-slotted with locking serrations under the head - with nylock patch for added locking strength (double locking device designed to grip into the threads without backing out)
- 5/8 and 3/4 have keyway with extended body length for increased strength
- Can be ordered in boxes of 12 or individually
Documents
There are no documents available.
Specifications
- BrandFactory Authorized Part
- Shipping Height6 in
- Shipping Length3.25 in
- Shipping Weight0.5 lb
- Shipping Width4.75 in
