HYDRAUKIC GAS VALVE ACTUATOR 26 SEC
HYDRAUKIC GAS VALVE ACTUATOR 26 SEC
Description

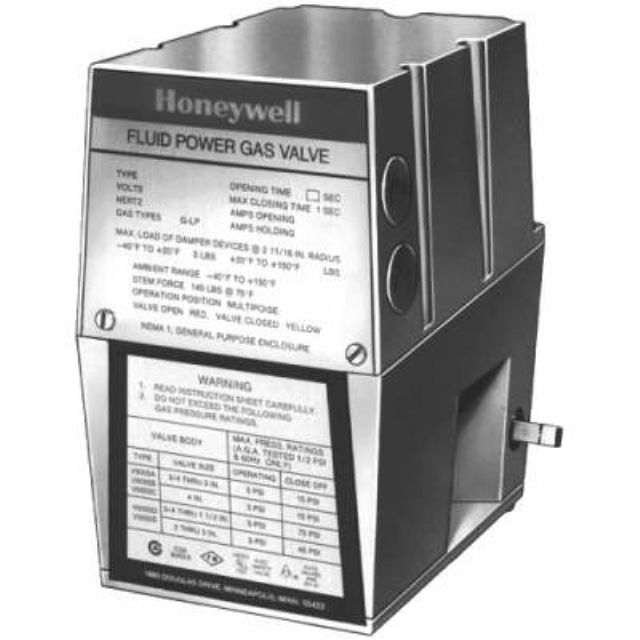

Honeywell International Inc. 120 VAC 60 Hz, 0.94 A, 52D, NEMA 1, IP30, 26 Sec Opening, Less than 1 Sec Closing, 5 PSI, Die-Cast Aluminum, ON/OFF, Low Pressure, Standard, Fluid Power Gas Valve Actuator without Auxiliary Switch
Use in combination with V5055 or V5097 Gas Valves to control gas supply to commercial and industrial burners.
Features & Benefits
- Use with Natural or LP Gases
- Mount Directly in Gas Supply Line
- Normally Closed Valves are Rated for Final Shutoff Service Safety Shutoff
Specifications
- Type: Gas Valve, On-Off Service
- Nominal Size: 1 Inch x 1 Inch
- End Connection: Threaded x Threaded
- Body Material: Unpainted Die-Cast Aluminum
- Actuator Type: Fluid Power
- Enclosure: NEMA 4
- Input Supply Rating: 120 Volt AC 60 Hertz
- Temperature Rating: -40 to 150 Deg F
- Pressure Rating: 15 PSI
- Inclusions/Features: 1/4 Inch-18 TPI Threaded Upstream/Downstream Tap and Plug
- Application: V9055/V4055/V4062 Commercial and Industrial Burner
- Applicable Standard: UL, CSA Capacity 960 CFH
Documents
Specifications
- BrandHoneywell
