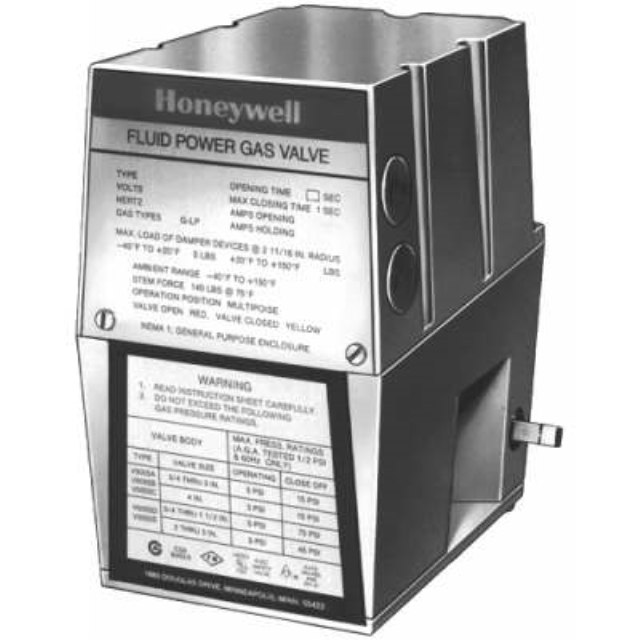

HYDRAULIC GAS VALVE ACTUATOR 13 SEC
HYDRAULIC GAS VALVE ACTUATOR 13 SEC
Description
Honeywell International Inc. 120 VAC 60 Hz, 0.94 A, 52D, NEMA 1, IP30, 26 Sec Opening, Less than 1 Sec Closing, 5 PSI, Die-Cast Aluminum, ON/OFF, Standard, Fluid Power Gas Valve Actuator with Proof of Closure Switch and Damper Shaft without Auxiliary Switch
Use in combination with V5055 or V5097 Gas Valves to control gas supply to commercial and industrial burners.
Features & Benefits
- Use with Natural or LP Gases
- Mount Directly in Gas Supply Line
- Normally Closed Valves are Rated for Final Shutoff Service Safety Shutoff
Specifications
- Type: Gas Valve, On-Off Service, Double Seal
- Nominal Size: 1 Inch x 1 Inch
- End Connection: Threaded x Threaded
- Body Material: Unpainted Die-Cast Aluminum
- Actuator Type: Fluid Power
- Enclosure: NEMA 4
- Input Supply Rating: 120 Volt AC 60 Hertz
- Temperature Rating: -40 to 150 Deg F
- Pressure Rating: 15 PSI
- Inclusions/Features: 1/4 Inch-18 TPI Threaded Upstream/Downstream Tap and Plug, Safety Shut-Off
- Application: V9055/V4055/V4062 Commercial and Industrial Burner
- Applicable Standard: UL, CSA Capacity 960 CFH
Documents
Specifications
- BrandHoneywell
